AC voltage drop simulator PDRP-10T1/20T1
AC voltage drop simulator PDRP-10T1/20T1

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: EMC Prima

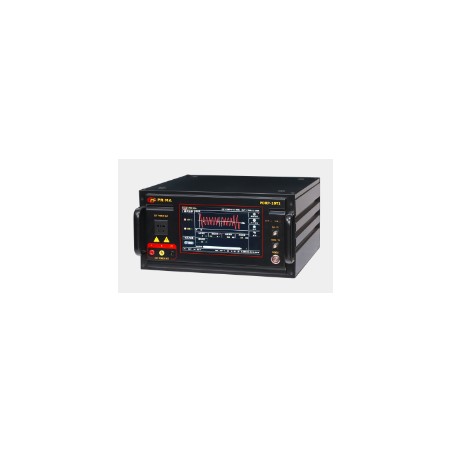

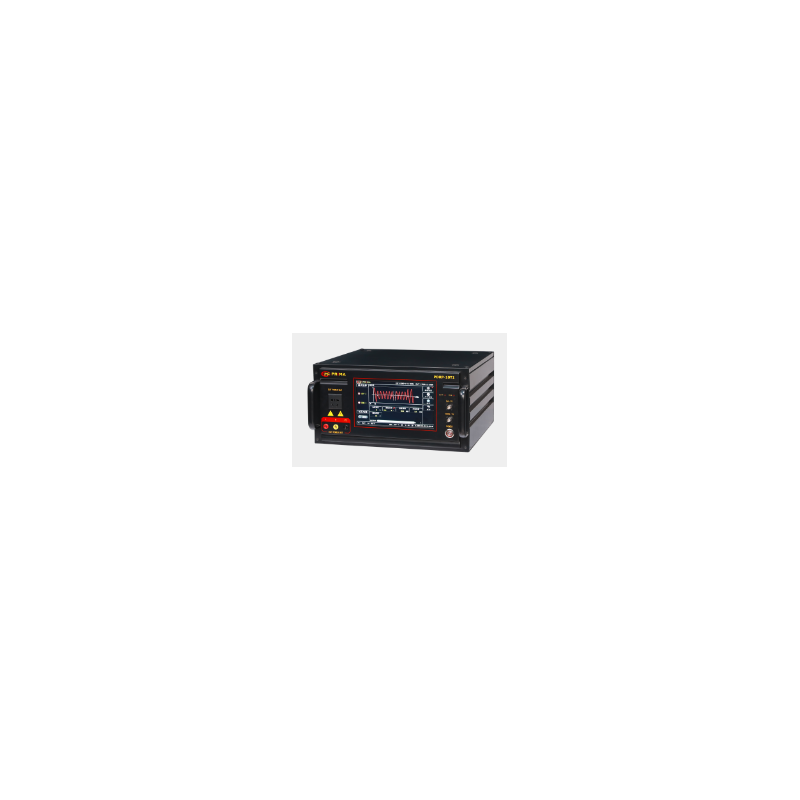

AC voltage drop simulator PDRP-10T1/20T1

  • PDRP-10T1/20T1

The PDRP-10T1 Frequency Drop Generator is a precision test instrument designed to perform AC voltage drop experiments. It is used to test the resistance of electrical and electronic devices to mains voltage fluctuations, providing a common basis for assessing the reliability of the device under test in the event of a mains voltage dip, interruption, or surge.

Features:

  • Positive and negative polarity switching capability
  • 10.1-inch color touchscreen
  • Freely switchable positive and negative polarity
  • Chinese and English language switching capability
  • Modes: custom, enhanced, and standard
  • Built-in RJ45 interface, optional remote control
  • Dip injection phase angle adjustable asynchronously or freely within the range of 0–360°

Standards compliance:

  • IEC61000-4-11 / GB/T17626.11

Product parameters:

Parameter PDRP-10T1 PDRP-20T1
Voltage Change Range 0% ~ 120% 0% ~ 120%
Duration 0.5 ~ 6000.0 cycles 0.5 ~ 6000.0 cycles
Resolution 0.5 cycles 0.5 cycle
Switching phase setting 0° ~ 359° or asynchronously 0° ~ 359° or asynchronously
Voltage Change Repeat 1 ~ 60000 cycles 1 ~ 60000 cycles
Test Interval 0.5 ~ 6000.0 cycles 0.5 ~ 6000.0 cycles
Resolution 0.5 cycle 0.5 cycle
Trigger mode Automatic, internal trigger Automatic, internal trigger
Coupling load capacity Single-phase AC 110 ~ 220V Single-phase AC 110 ~ 220V
Operating Power Supply AC 220V 10% 50/60Hz AC 220V 10% 50/60Hz
Standard Voltage Drop Values 0%, 40%, 70%, 80%, 100%, 120% 0%, 40%, 70%, 80%, 100%, 120%
Voltage Drop Phase Resolution 1° 1°
Coupling Load Capacity AC 110 ~ 220V, 10A AC 110 ~ 220V, 20A
