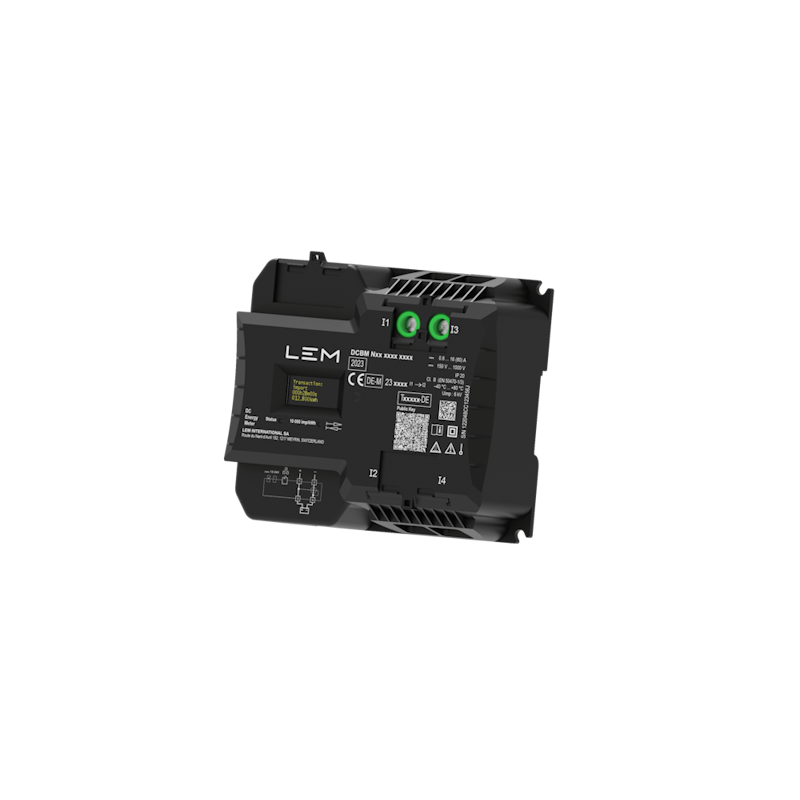

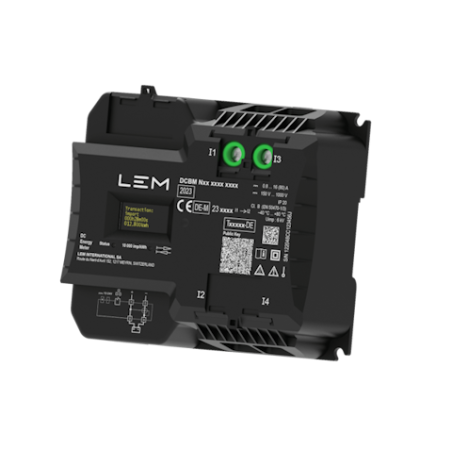

DCBM 100 - DC ENERGY METER FOR ELECTRIC VEHICLE CHARGERS up to 30 kW

DCBM 100 - DC meter for EV chargers up to 30 kWp

The LEM DCBM (Direct Current Billing Meter) is the most convenient form of energy measurement in electric vehicle chargers.

Legalization Certification

You don't have to waste time on a tedious certification process. DCBM meters have MID/PTB certificates, which allows for legal billing of customers for energy consumed throughout the European Union and North America.

Quick Installation and Easy Integration

• Optimized assembly and connection process saves time on the production line.
• LEM DCBM was designed with ease of integration into existing systems in mind.
• Live communication with the network and automatic fee calculation will allow you to offer your customers innovative billing models.



Proven LEM Quality

LEM company is synonymous with high quality in the field of electrical measurements. Thanks to its experience and advanced technologies, LEM ensures the reliability and durability of its products. This is the certainty that your business operates on rock-solid foundations.

The device has a display.

The product offers OCMF format compatible with S.A.F.E. verification software and HTTP communication with a full set of APIs for quick startup and easy integration.

Advantages

• Adapted to industrial limitations
• Plug&Play software integration
• Compliance with parking time billing and energy consumed billing
• System monitoring




Technical Parameters

• Operating range: 150 to 1000V DC
• Auxiliary power supply range: +12 to +24V DC
• Current ranges: Imax = 80A
• Max power: 30 kW
• Accuracy class: B
• Temperature: -40 ®C to +80 ®C
• 2-way energy measurement (V2G)
• Real-time monitoring of current, voltage, temperature and energy values
• Reinforced insulation at 1000 VDC, OVC II, Uimp 5.96 kV
• Housing protection degree: IP20
• DIN35mm rail and screw mounting
• Durable construction




Standards

• EN 50470-1:2006
• EN 50470-3:2006
• PTB-A 50.7
• PTB-A 20.1
• CISPR32 Class-B emission
• Directive 2014/32/EU (MID)
• IEC 62052-11:2003
• IEC 61000-6-2:2016
• IEC 61000-6-3:2016
• UL94-V0




Application

• Electric vehicle chargers
• Monitoring energy flow in DC networks
• Energy storage
