Three-phase thyristor rectifiers of the PT3F series
Three-phase thyristor rectifiers of the PT3F series

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: DACPOL SERVICE

Three-phase thyristor rectifiers of the PT3F series

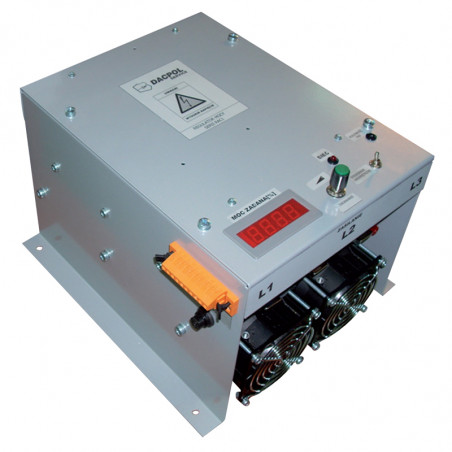

Three-phase thyristor rectifiers of the PT3F series 30÷200 A


Rectifier PT3F sets allow the construction of six-pulse rectifiers with voltage or current regulation in a wide range of supply voltages. The controller is adapted to cooperate with various types of regulators with typical input signal values of 0÷10 V or 4÷20 mA. A blocking input facilitates connection of the controller with a safety automation system.

Performance advantages of thyristor rectifiers

  • convenient mounting and wiring in control cabinets
  • high level of passive safety of the operator ensured by shielding of conductive parts
  • easy fuse replacement
  • visual check of the correctness of the rectifier control
  • localization of damage without the use of measuring instruments
  • easy repair in case of damage

Outstanding durability is achieved through:

  • selection of thyristors for anticipated loads and operating conditions
  • use of a heat sink to ensure optimum thermal conditions for the thyristors
  • use of RC suppressors to reduce switching surges
  • incorporation of fast fuses in the starter design for short-circuit protection of thyristors





Technical data

Max. load current
 30 - 100 A 120 - 250 A
Peak current t = 10 ms 1310 A 1665 A 5100 A 7500 A
Power supply
 3 x 400 V, 50 Hz
Control
Power supply
 3 x 230 V, 50 Hz
Control signal
 0÷10 V or 4÷20 mA
Lock 0 (GND) or 1 (10.24V)
Protection
Surge protection RC suppressors
Short-circuit protection fast fuses
Thermal protection thermal switches, NO contacts
Cooling forced
Insulation test voltage 2,5 kV
Protective cover Metal enclosure
Ingress Protection IP00
Environmental conditions
Operating temperature range 0 ÷ 50 °C
Storage temperature range -20 ÷ 60 °C
Relative humidity from 85% (no condensation)
Altitude up to 1000 m without power reduction
Weight and dimensions
Dimensions L x W x H [mm] 290 x 220 x 193 346 x 304 x 24
Weight [kg]
 6 10
Wiring and mounting
Fixing of connecting cables M6/M8 screws (Cu rails)
Rectangle of fixing holes [mm] 250 x 250 220 x 330
Less
Read more

Send an inquiry

Are you interested in this product? Do you need additional information or individual pricing?

Contact us
ASK FOR THE PRODUCT close
Thank you for sending your message. We will respond as soon as possible.
ASK FOR THE PRODUCT close
Browse
send an inquiry

Add to Wishlist

You must be logged in

Three-phase thyristor rectifiers of the PT3F series 30÷200 A


Rectifier PT3F sets allow the construction of six-pulse rectifiers with voltage or current regulation in a wide range of supply voltages. The controller is adapted to cooperate with various types of regulators with typical input signal values of 0÷10 V or 4÷20 mA. A blocking input facilitates connection of the controller with a safety automation system.

Performance advantages of thyristor rectifiers

  • convenient mounting and wiring in control cabinets
  • high level of passive safety of the operator ensured by shielding of conductive parts
  • easy fuse replacement
  • visual check of the correctness of the rectifier control
  • localization of damage without the use of measuring instruments
  • easy repair in case of damage

Outstanding durability is achieved through:

  • selection of thyristors for anticipated loads and operating conditions
  • use of a heat sink to ensure optimum thermal conditions for the thyristors
  • use of RC suppressors to reduce switching surges
  • incorporation of fast fuses in the starter design for short-circuit protection of thyristors





Technical data

Max. load current
 30 - 100 A 120 - 250 A
Peak current t = 10 ms 1310 A 1665 A 5100 A 7500 A
Power supply
 3 x 400 V, 50 Hz
Control
Power supply
 3 x 230 V, 50 Hz
Control signal
 0÷10 V or 4÷20 mA
Lock 0 (GND) or 1 (10.24V)
Protection
Surge protection RC suppressors
Short-circuit protection fast fuses
Thermal protection thermal switches, NO contacts
Cooling forced
Insulation test voltage 2,5 kV
Protective cover Metal enclosure
Ingress Protection IP00
Environmental conditions
Operating temperature range 0 ÷ 50 °C
Storage temperature range -20 ÷ 60 °C
Relative humidity from 85% (no condensation)
Altitude up to 1000 m without power reduction
Weight and dimensions
Dimensions L x W x H [mm] 290 x 220 x 193 346 x 304 x 24
Weight [kg]
 6 10
Wiring and mounting
Fixing of connecting cables M6/M8 screws (Cu rails)
Rectangle of fixing holes [mm] 250 x 250 220 x 330
Less
Read more
