Manufacturer: DetasUltra

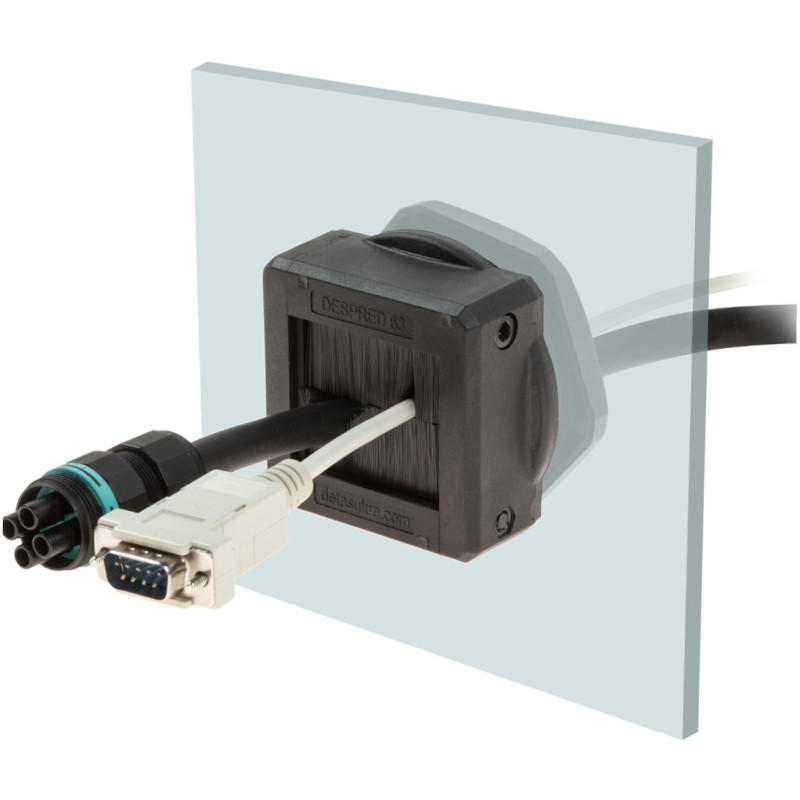

DESPRED ZZ 63 - Cable entry with brushes

  • 1731060263
  • Product Type Brush cable glands
  • Hole 63,5

It is a divisible frame with two brush rows. Excellent protection against dust and a better mechanical seal compared to single brush solutions are achieved.

  • Double brush frame for cables with and without connectors.
  • Frame screws in AISI304 Stainless Steel with Black Dacromet coating.
  • M32 and M63 metric threads
  • Material: PP+GF
  • Flammability: self-extinguishing according to UL94-V0
  • Temperature: -25°C... +80°C (static)
  • Features: halogen-free, silicone-free,flame class V0 both colors, comply with ASTM IRM 903 , UL 157
Model Code Max. opening [mm]
DESPRED ZZ 32 1731060232 32,5
DESPRED ZZ 63 1731060263 63,5
