Manufacturer: Ebmpapst

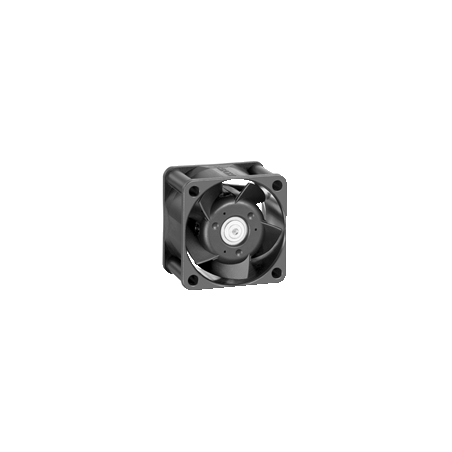

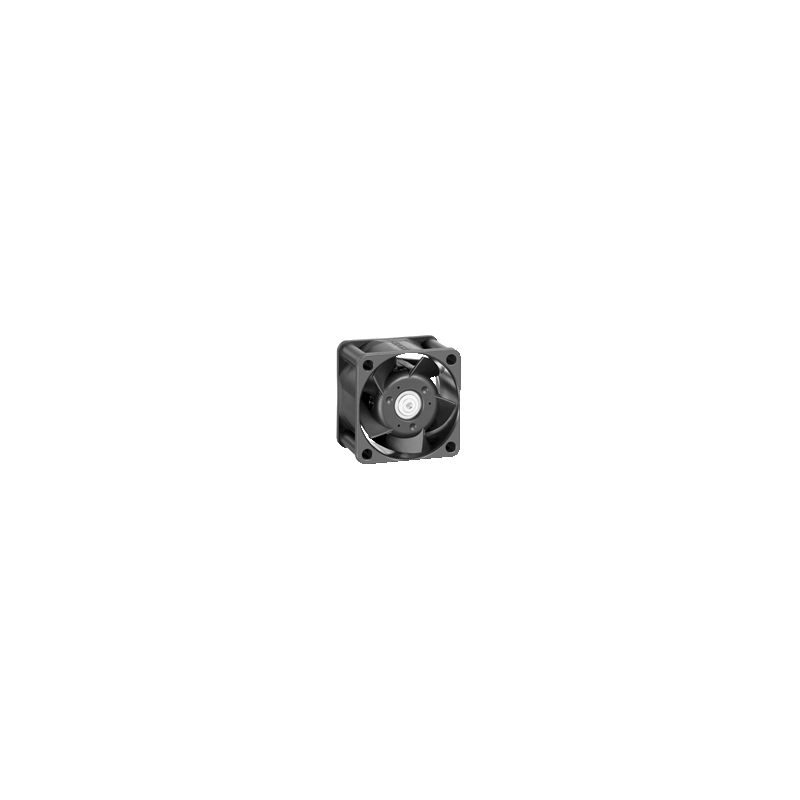

412 JH DC Axial Fan 12V 3W

  • 412JH
  • Air flow direction Exhaust through struts
  • Dimensions 40 x 40 x 25 mm
  • Housing material PBT material reinforced with glass fiber
  • Input power 3
  • Nominal voltage 12
  • Speed 11700
  • Min. ambient temperature -20
  • Max. ambient temperature 70
  • Air flow 22
  • Fan type DC axial compact
  • Voltage range 8 ... 13,5
  • Rotor material Glass fiber reinforced PA material
  • Type of voltage DC
  • Weight 0,05 kg
