DK 20 C420 U current transducer
DK 20 C420 U current transducer

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: LEM

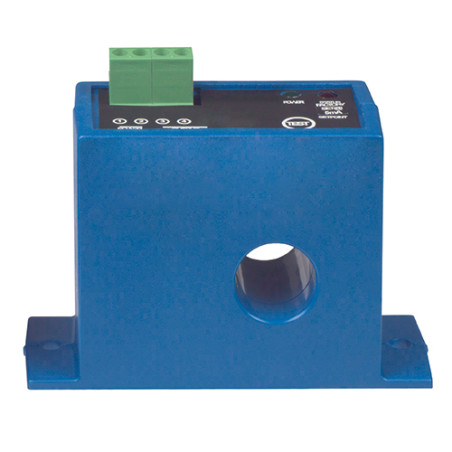

DK 20 C420 U current transducer

  • DK 20 C420 U
  • Accuracy 1,00%
  • Rated Current [A] 2005, 10, 20
  • Primary signal [AC / AC+DC / DC] DC
  • Supply voltage [V] 20...45V DC
  • Mounting [THT / SMD / DIN / Panel / On primary rail] Panel/DIN
  • App Automation/Renewable Energy/Power Supplies
  • Output signal type [current/voltage] current
  • Minimum operating temperature [°C] -20
  • Maximum operating temperature [°C] 50
  • Frequency response (-3dB) [kHz] DC
  • Feedback loop [open / closed] // Eta technology open

Applications:

  • Battery bank load monitoring
    Charging current monitoring.
  • Operation supervision
  • Power supplies
    Measurement of DC current or auxiliary loads.
  • Heating elements
    Faster response than temperature sensors.

Technical data:

Measured quantity Current
Rated current 5, 10, 20A
Measuring range 20A
Output signal Unipolar current 4-20mA
Signal Primary DC
Power Supply 20…45V
Accuracy 1%
Operating Temperature -20°C…50°C
Technology Open Loop, Hall Effect
Mounting DIN Rail Mounted
