Manufacturer: FANDIS

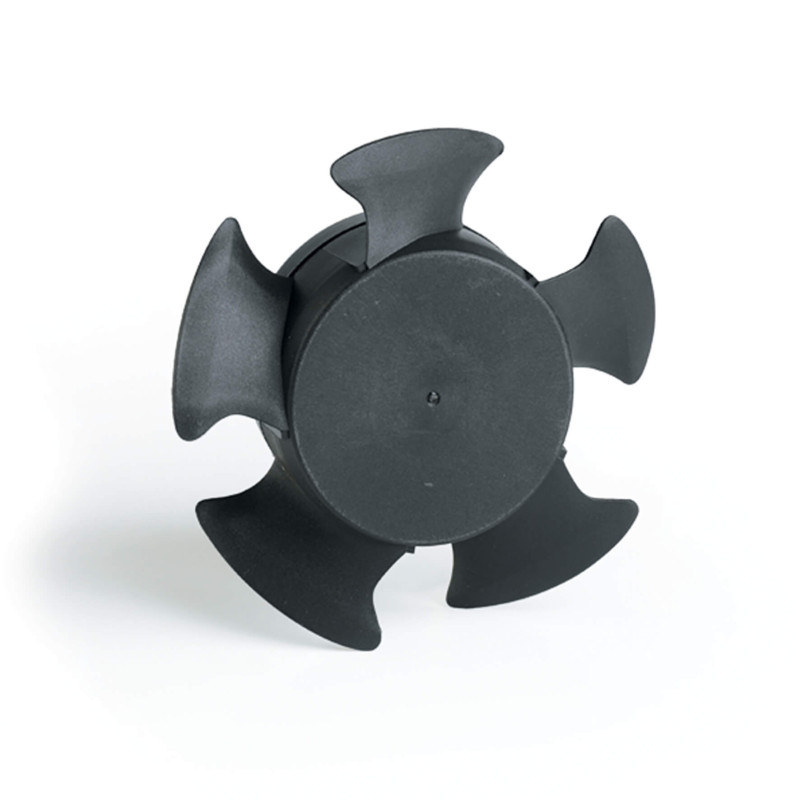

A12W21SWBWF0 AC Axial Fan 208-230V 21W

  • A12W21SWBWF0
  • Air flow direction Exhaust through brackets
  • Dimensions Ø120 x 38 mm
  • Rated voltage 208-230
  • Housing material Odlew aluminium
  • Protection rating IP55
  • Frequency 50
  • Input power 22
  • Speed 2700
  • Current draw 0,14
  • Air flow 165
  • Certificate CE; UKCA
  • Mounting method screws
  • Static Pressure 62
  • Noise Level 47
  • Fan type AC axial
  • Voltage range 200-240
  • Type of voltage AC
  • Motor protection Thermal protection
  • Insulation class B
  • Motor bearing Ball bearing
  • Protection class II
  • Electrical hookup Wires
  • Storage temperature -40÷70 °C
  • Working temperature -10÷60 °C
