Slit light barriers (infrared light) of the type PSI
  • Slit light barriers (infrared light) of the type PSI

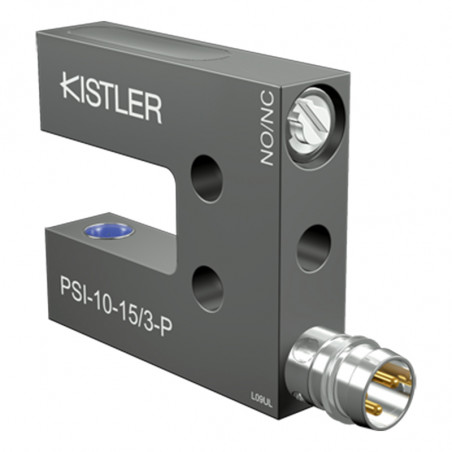

Photos are for informational purposes only. View product specification

Manufacturer: Vester

Slit light barriers (infrared light) of the type PSI

Technical data

Circuit: type PSI... - constant light trigger
type PSI- /W-3-P - chopped light trigger
Voltage: 12...30V
Current consumption: max 60mA
Operation: static
Output with LED: PNP
Function: bright-dark switch
Output current: 500 mA
Repeatability: < 0,02mm
Frequency: type PSI... - > 1kHz
type PSI- /W-3-P - > 4kHz
Operating temperature: 0...60°C
EMC: IEC 801.... CE
Type of protection: IP 65

Accuracy

Type PSI...:
gap width A: 10 - 20/25 - 30 - 40mm,
element diameter: 0,4-0,6- 0,7-1mm.

Type PSI-...../W-3-P:
gap width A: 10 - 20/25 - 30/40mm,
element diameter: 0,2 - 0,3 - 0,4mm.

PSI-...-...

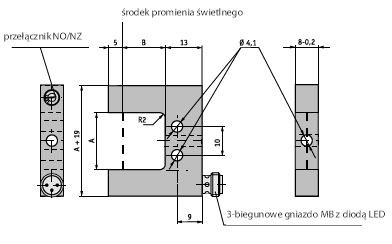

PSI-10-15 DO PSI-40-80 ORAZ PSI-10-30/W-3-P DO PSI-40-80/W-3-P wymiary

Type Light barrier Dimensions
A B
PSI-10-15/3-P 6331-00000-3002 10 15
PSI-10-30/3-P 6332-00000-3002 10 30
PSI-20-15/3-P 6333-00000-3002 20 15
PSI-20-30/3-P 6334-00000-3002 20 30
PSI-20-40/3-P 6351-00000-3002 20 40
PSI-20-60/3-P 6352-00000-3002 20 60
PSI-25-80/3-P 6360-00000-3002 25 80
PSI-30-15/3-P 6335-00000-3002 30 15
PSI-30-30/3-P 6336-00000-3002 30 30
PSI-30-40/3-P 6354-00000-3002 30 40
PSI-30-60/3-P 6355-00000-3002 30 60
PSI-40-40/3-P 6357-00000-3002 40 40
PSI-40-60/3-P 6358-00000-3002 40 60
PSI-40-80/3-P 6359-00000-3002 40 80

PSI-...-.../W-3-P

PSI-10-15 DO PSI-40-80 ORAZ PSI-10-30/W-3-P DO PSI-40-80/W-3-P wymiary

Type Light barrier Dimensions Terminals 3 pole M8 socket
A B
PSI-10-30/W-3-P 6332-00000-3022 10 30 PSI-10-15 DO PSI-40-80 ORAZ PSI-10-30/W-3-P DO PSI-40-80/W-3-P
PSI-20-30/W-3-P 6334-00000-3022 20 30
PSI-20-40/W-3-P 6351-00000-3022 20 40
PSI-20-60/W-3-P 6352-00000-3022 20 60
PSI-25-80/W-3-P 6360-00000-3022 25 80
PSI-30-30/W-3-P 6336-00000-3022 30 30
PSI-30-40/W-3-P 6354-00000-3022 30 40
PSI-30-60/W-3-P 6355-00000-3022 30 60
PSI-40-40/W-3-P 6357-00000-3022 40 40
PSI-40-60/W-3-P 6358-00000-3022 40 60
PSI-40-80/W-3-P 6359-00000-3022 40 80
