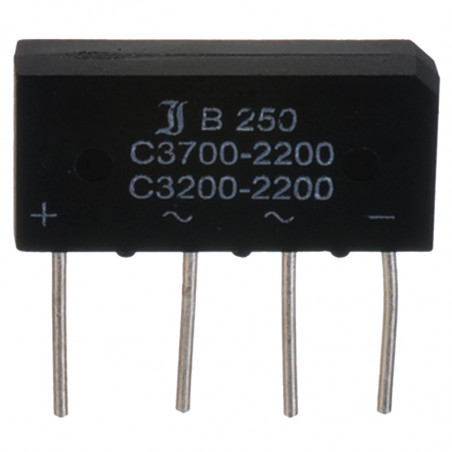

Photos are for informational purposes only. View product specification
Table. Electrical Data
Connection | Module Type | Io [A] maximum current in 3-phase bridge Natural Cooling | IIo [A] maximum current in 1-phase bridge Forced cooling Vp ≥ 2,5 m/s | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
RE120 120[mm] | RE180 180 [mm] | RE240 240 [mm] | RE300 300 [mm] | RE350 350 [mm] | RE120 120 [mm] | RE180 180 [mm] | RE240 240 [mm] | RE300 300 [mm] | RE350 350 [mm] | ||
One phase bridges made of two electro insulated modules on the radiator | |||||||||||
![]() |
IRKD 56/.. | 50 | 60 | 74 | 90 | 100 | 110 | ||||
IRKD 71/.. | 65 | 78 | 92 | 120 | 130 | 135 | |||||
IRKD 91 A. | 70 | 90 | 100 | 120 | 135 | 140 | 150 | 155 | 160 | 170 | |
IRKD 166-.. | 72 | 94 | 112 | 165 | 185 | 200 | |||||
IRKD 196-.. | 76 | 100 | 120 | 175 | 190 | 220 | |||||
IRKD 236-.. | 80 | 110 | 130 | 135 | 180 | 195 | 225 | 230 | 240 | ||
IRKD 250-.. | 85 | 114 | 130 | 220 | 255 | 280 | |||||
IRKD 270-.. | 150 | 155 | 300 | 340 | |||||||
IRKD 320-.. | 160 | 170 | 180 | 400 | 450 | 500 | |||||
![]() |
IRKT 26/.. | 25 | 30 | 35 | 45 | 50 | 52 | ||||
IRKT 41 A. | 38 | 42 | 45 | 65 | 70 | 75 | |||||
IRKT 56A. | 40 | 52 | 55 | 80 | 85 | 90 | |||||
IRKT 71 A. | 42 | 54 | 60 | 85 | 92 | 96 | |||||
IRKT 91/.. | 50 | 65 | 75 | 82 | 85 | 100 | 115 | 120 | 125 | 135 | |
IRKT 105/.. | 90 | 95 | 135 | 145 | |||||||
IRKT 136-.. | 60 | 75 | 90 | 130 | 150 | 170 | |||||
IRKT 142-.. | 62 | 78 | 92 | 135 | 155 | 175 | |||||
IRKT 162-.. | 65 | 80 | 95 | 105 | 110 | 140 | 160 | 180 | 200 | 210 | |
IRKT 170-.. | 68 | 86 | 105 | 175 | 200 | 220 | |||||
IRKT 230-.. | 70 | 95 | 112 | 185 | 215 | 230 | |||||
IRKT 250-.. | 72 | 100 | 120 | 130 | 135 | 190 | 220 | 235 | 240 | 250 | |
Three phase bridges made of three electro insulated modules on the radiator | |||||||||||
![]() |
IRKD 56/.. | 60 | 75 | 85 | |||||||
IRKD 71/.. | 70 | 85 | 105 | 150 | 160 | 180 | |||||
IRKD 91 A. | 80 | 100 | 115 | 130 | 135 | 170 | 190 | 200 | 220 | 250 | |
IRKD 166-.. | 82 | 104 | 122 | 185 | 220 | 240 | |||||
IRKD 196-.. | 85 | 106 | 130 | 200 | 230 | 255 | |||||
IRKD 236-.. | 90 | 115 | 135 | 150 | 220 | 250 | 280 | 300 | 320 | ||
IRKD 250-.. | 140 | 280 | 330 | ||||||||
IRKD 270-.. | 150 | 155 | 300 | 340 | |||||||
IRKD 320-.. | 160 | 170 | 180 | 400 | 450 | 500 | |||||
![]() |
IRKT 26/.. | 30 | 32 | 40 | 50 | 60 | 65 | ||||
IRKT 41 A. | 35 | 48 | 52 | 75 | 80 | 90 | |||||
IRKT 56A. | 42 | 55 | 65 | 100 | 105 | 110 | |||||
IRKT 71 A. | 45 | 58 | 70 | 104 | 115 | 125 | |||||
IRKT 91 A. | 50 | 68 | 80 | 90 | 100 | 120 | 140 | 150 | 160 | 180 | |
IRKT 105/.. | 100 | 110 | 170 | 190 | |||||||
IRKT 136-.. | 60 | 80 | 100 | 150 | 175 | 190 | |||||
IRKT 142-.. | 62 | 82 | 102 | 155 | 180 | 195 | |||||
IRKT 162-.. | 65 | 85 | 105 | 110 | 115 | 160 | 185 | 210 | 240 | 270 | |
IRKT 170-.. | 90 | 110 | 220 | 260 | |||||||
IRKT 230-.. | 100 | 125 | 235 | 270 | |||||||
IRKT 250-.. | 105 | 140 | 140 | 150 | 250 | 320 | 360 | 400 |
Table. Three phase bridges made of one electro insulated module
Connection | Module type | Io [A] natural cooling | Io [A] forced cooling Vp ≥ 2,5 m/s | ||||
---|---|---|---|---|---|---|---|
Re120 120 [mm] | Re180 180 [mm] | Re240 240 [mm] | Re120 120 [mm] | Re180 180 [mm] | Re240 240 [mm] | ||
![]() |
60 MT...K | 35 | 60 | ||||
70 MT...K | 37 | 70 | |||||
90 MT...K | 40 | 80 | |||||
110 MT...K | 45 | 90 | |||||
130 MT...K | 48 | 100 | |||||
160 MT...K | 50 | 55 | 60 | 110 | 120 | 130 | |
![]() |
53 MT...K | 25 | 45 | ||||
93 MT...K | 30 | 60 | |||||
113 MT...K | 35 | 40 | 50 | 70 | 80 | 90 |
Table. Electrical data
Connection | Module Type | Io [ARMS] natural cooling | Io [ARMS] forced cooling V ≥ 2,5 m/s | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
Re120 120 [mm] | Re180 180 [mm] | Re240 240 [mm] | Re300 300 [mm] | Re350 350 [mm] | Re120 120 [mm] | Re180 180 [mm] | Re240 240 [mm] | Re300 300 [mm] | Re350 350 [mm] | ||
one phase connectors made of one electro insulated module on radiator | |||||||||||
![]() |
IRKT 26A. | 40 | 45 | 50 | 50 | 60 | 62 | ||||
IRKT 41A. | 55 | 60 | 70 | 75 | 80 | 90 | |||||
IRKT 56A. | 65 | 80 | 90 | 100 | 110 | 115 | |||||
IRKT 71A. | 75 | 85 | 95 | 120 | 130 | 135 | |||||
IRKT 91 A. | 90 | 100 | 115 | 120 | 125 | 150 | 160 | 170 | 180 | ||
IRKT 105A. | 130 | 135 | 190 | ||||||||
IRKT 136-.. | 110 | 130 | 150 | 200 | 225 | 230 | |||||
IRKT 142-.. | 112 | 132 | 155 | 210 | 228 | 235 | |||||
IRKT 162-.. | 115 | 135 | 160 | 170 | 175 | 220 | 240 | 260 | 270 | ||
IRKT 170-.. | 125 | 170 | 200 | 280 | 300 | 330 | |||||
IRKT 230-.. | 135 | 180 | 210 | 290 | 320 | 350 | |||||
IRKT 250-.. | 140 | 190 | 215 | 220 | 230 | 315 | 330 | 370 | 400 | 420 | |
three phase connectors made of three electro insulated module on radiator | |||||||||||
![]() |
IRKT 26A. | 20 | 22 | 30 | 40 | 45 | 50 | ||||
IRKT 41A. | 25 | 40 | 42 | 60 | 65 | 70 | |||||
IRKT 56A. | 30 | 45 | 50 | 80 | 85 | 90 | |||||
IRKT 71A. | 32 | 47 | 52 | 86 | 88 | 100 | |||||
IRKT 91 A. | 40 | 55 | 58 | 65 | 70 | 92 | 110 | 115 | 125 | 150 | |
IRKT 105A. | 75 | 80 | 135 | 160 | |||||||
IRKT 136-.. | 47 | 60 | 77 | 115 | 125 | 140 | |||||
IRKT 142-.. | 48 | 62 | 78 | 118 | 128 | 145 | |||||
IRKT 162-.. | 50 | 65 | 80 | 90 | 95 | 120 | 130 | 154 | 170 | 190 | |
IRKT 170-.. | 70 | 85 | 160 | 190 | |||||||
IRKT 230-.. | 75 | 90 | 175 | 200 | |||||||
IRKT 250-.. | 78 | 92 | 100 | 105 | 180 | 230 | 260 | 330 |
One phase bridge
Two electro insulated modules type IRKT 71/12 (casing ADD-A-Pak) Radiator RE120 (120 mm) forced cooling |
![]() |
Three phase bridge
Three electro insulated modules type IRKT 71/12 (casing ADD-A-Pak) Radiator RE120 (120 mm) forced cooling |
