Manufacturer: DetasUltra

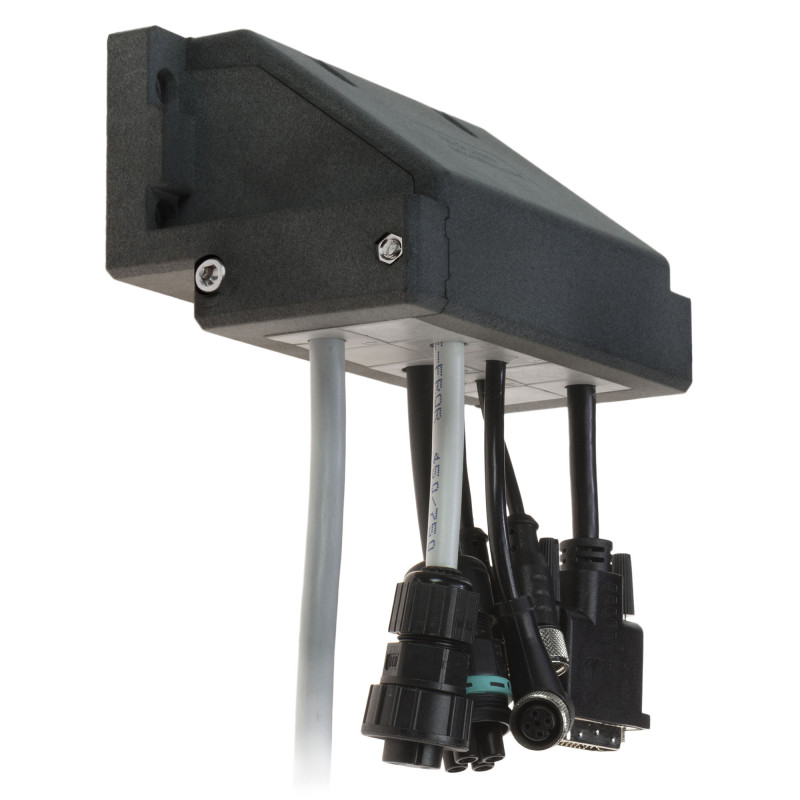

DES 24-90 - Cable entry frames

  • 1731010124
  • Product Type Modular cable glands
  • Hole 112 x 39

The DES 24-90 cable entry frame allows 90° entry of cables with and without connectors and corrugated conduits into electrical cabinets, switchboards, machine panels and other devices.

  • Multiple configurations in the same frame and highest water protection with all the combinations of grommets.
  • Frame screws in AISI304 Stainless Steel
  • 90° cable entry
  • IP54
  • Cable strain relief according to EN 62444
  • Robust construction IK10
  • Material: PP+GF
  • Flammability: self-extinguishing according to UL94-V0
  • Temperature: -40°C... +155°C (static)
  • Features: halogen-free, silicone-free,flame class V0 both colors, comply with ASTM IRM 903 , UL 157
Model Code Max. opening [mm]
DES 24-90 1731010124 112 x 39
