Manufacturer: DetasUltra

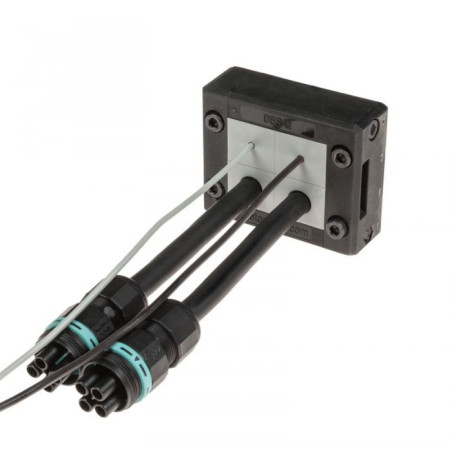

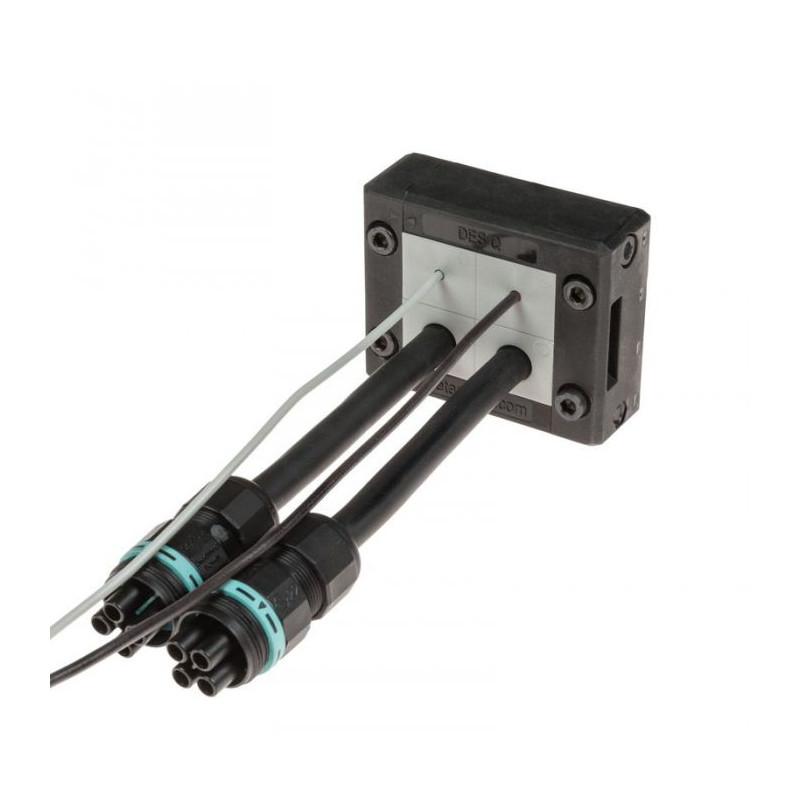

DES Q - Cable entry frames

  • 1731010008
  • Product Type Modular cable glands
  • Hole 40 x 39

The divisible DES Q frame allows cables with and without connectors to be routed through cabinets and machine panels. Once closed the frame guarantees the strain relief and high IP protection.

  • For 4 small grommets or 1 large one
  • Frame screws in AISI304 Stainless Steel
  • IP66 certified, Nema 4X* with any combination of grommets
  • Strain relief according to EN 62444
  • Robust construction IK10
  • Integrated gasket
  • ATEX version on request
  • Threaded inserts version on request

*4X for indoor use only

  • Material: PP+GF
  • Flammability: self-extinguishing according to UL94-V0
  • Temperature: -40°C... +155°C (static)
  • Features: halogen-free, silicone-free,flame class V0 both colors, comply with ASTM IRM 903 , UL 157
Model Code Max. opening [mm]
DES Q 1731010008 40 x 39
DES QA 1731310008 40 x 39
