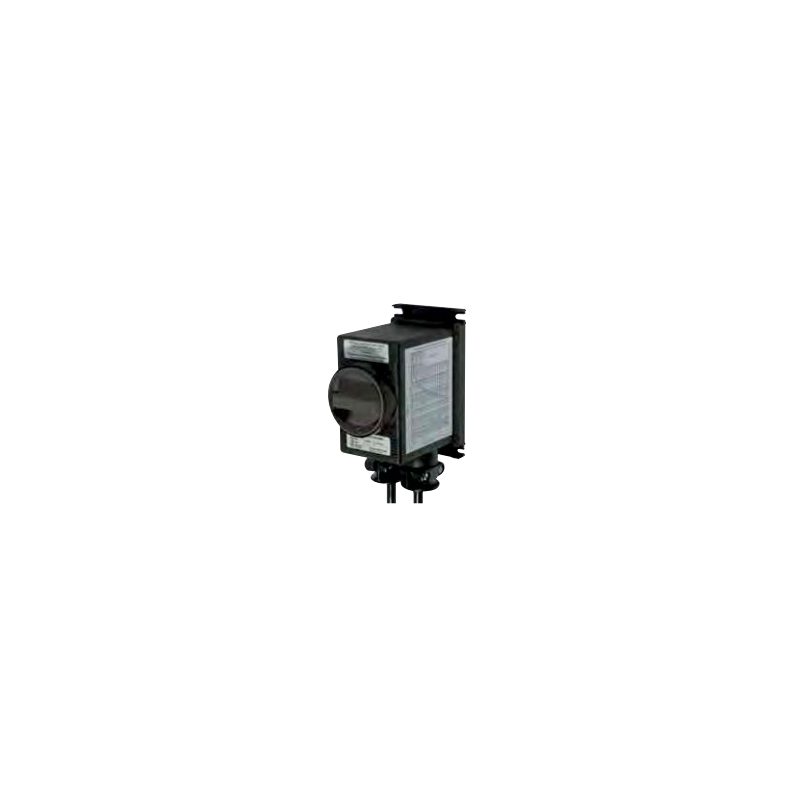

Ex GHG 635-12 motor circuit breaker

  • GHG 635-12
  • Material
  • Rated current
  • IP class

Motors must be protected against overloads, phase failure, and overheating:

The CEAG circuit breaker and manual motor starter offer phase failure protection, as well as thermal and electromagnetic tripping for reliable motor protection.

An optional undervoltage release or auxiliary contact complete the safety features.

The switch position is always indicated by the switch handle, virtually eliminating incorrect operation.

A special safety feature offered by the manual motor starter:

Can only be switched on locally – where the drive is located.

Operating current release for remote shutdown is optionally available.

CEAG manual motor starters have such precise tripping time that they are equally suitable for protecting Ex-e and Ex-d motors. just for safety.

Parameter Specification
Marking according to 2014/34/EU II 2 G Ex d IIC T6 / II 2 D Ex tD A21 IP66 T80 °C
EC-Type Examination Certificate PTB 05 ATEX 1020
Permissible Ambient Temperature –20 °C to +40 °C
Rated Voltage up to max. 690 V
Rated Current 0.1 to 16 A
Frequency 50/60 Hz
Rated switching capacity AC-3 according to EN 60947-3-4-1 Ue 650 V / Ie 16 A
Undervoltage release coil supply voltage 400 V 50/60 Hz (standard version)
440 V / 500 V / 24 V / 48 V / 60 V – on request
Tripping at voltage 35% – 70% Uc
Undervoltage tripping Switching possible at U > 85% Uc
Fuse protection up to 400 V AC short circuit up to 50 kA up to 6.3 A: 30 kA up to 16 A: 10 kA
Thermal Trigger Characteristics T II
Protection Class I
Protection Rating according to EN 60529 IP66
Connection Cable HO7RN-F (standard 3 m, other lengths available on request)
Weight 1 kg (without cable)
Housing Material Glass fiber reinforced polyester
Housing Color Black
Padlockable Can be locked in the OFF position with 3 commercially available padlocks (⌀ max. 6 mm)
