Manufacturer: DetasUltra

DESPRED 63 - Splittable cable glands

  • 1731050063
  • Hole 63,5
  • Product Type Dzielone przepusty kablowe

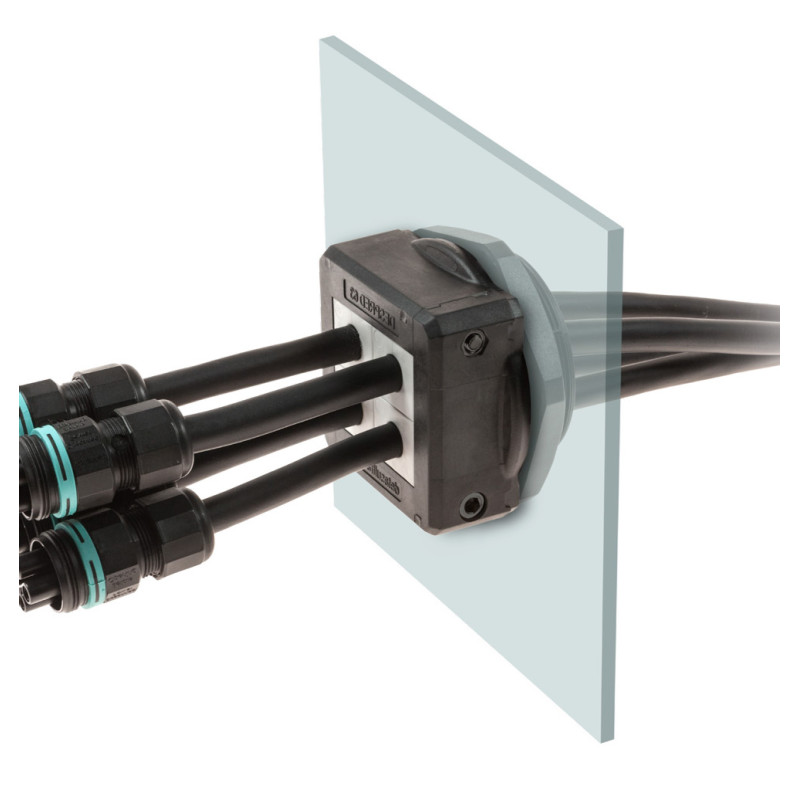

The DESPRED series allows to cross cabinet walls and switchboards with cables with connectors up to diameter of 34mm. Multiple grommets can also be used to increase the number of cables.

  • Frame screws in AISI304 Stainless Steel with Black Dacromet coating.
  • Metric threads M25, M32 and M63
  • IP66 certified, NEMA 4X*.
  • Strain relief according to EN 62444
  • Robust construction IK10
  • Material: PP+GF

*4X for indoor use only

  • Material: PP+GF
  • Flammability: self-extinguishing according to UL94-V0
  • Temperature: -40°C... +155°C (static)
  • Features: halogen-free, silicone-free,flame class V0 both colors, comply with ASTM IRM 903 , UL 157
Model Code Opening Ø [mm]
DESPRED 25 1731050025 25,5
DESPRED 32 1731050032 32,5
DESPRED 63 1731050063 63,5
DESPRED 25A 1731350025 25,5
DESPRED 32A 1731350032 32,5
DESPRED 63A 1731350063 63,5
