Manufacturer: DetasUltra

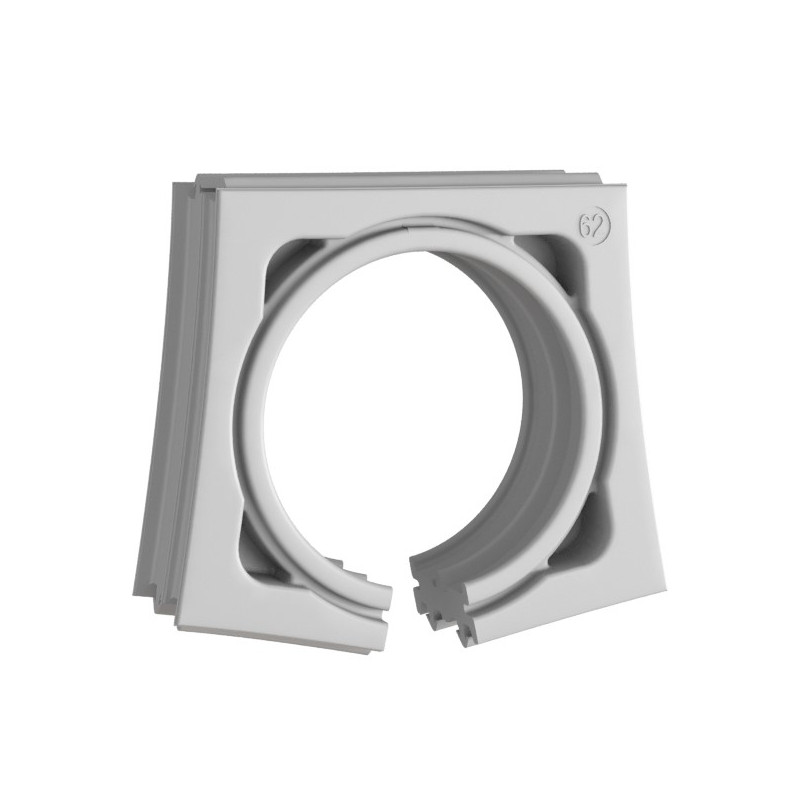

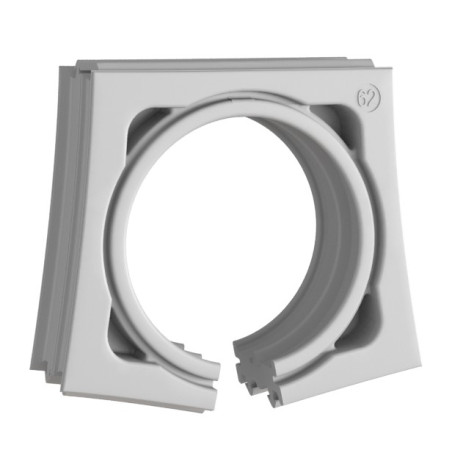

SPH 46G - Grommets

  • 1731010283
  • Product Type Moduły uszczelniające
  • 43 ~ 48

SPH series grommets allow casbles with diameters between 36 and 65 mm to be routed inside the DES 380M and and DES 380MX series splittable frames.

  • Grommets for cables or corrugated conduits.
  • Diameters from 36 to 65 mm
  • UL94-V0
  • IP54
  • Material: TPE
  • Flammability: self-extinguishing according to UL94-V0
  • Temperature: -40°C... +110°C (static)
  • Features: halogen-free, silicone-free,flame class V0 both colors, comply with ASTM IRM 903 , UL 157
Model Code Cable Ø max. [mm]
SPH 0G 1731010278 -
SPH 38G 1731010281 36 ~ 39
SPH 42G 1731010282 41 ~ 44
SPH 46G 1731010283 43 ~ 48
SPH 50G 1731010284 47 ~ 51
SPH 54G 1731010285 52 ~ 56
SPH 58G 1731010286 56 ~ 60
SPH 62G 1731010287 60 ~ 65
