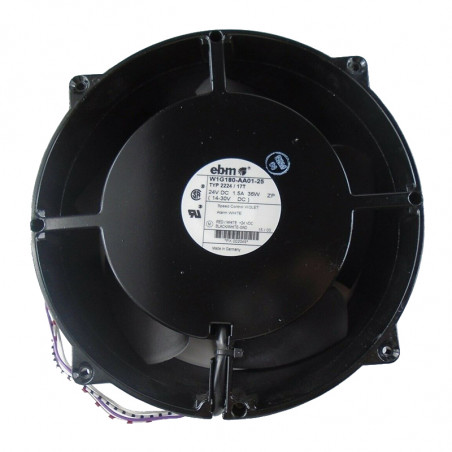

Compact and diagonal EBM ventilators
Compact and diagonal EBM ventilators

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: Ebmpapst

Compact and diagonal EBM ventilators

Table. Technical data

Type Voltage
[V DC]		 voltage range
[V DC]		 Efficiency
[m3/h]		 Speed
[turn/min.]		 Power
[W]		 Current
[A]		 Noise level
[dB]		 Operation temperature
[°C]		 Weight
kg]		 Drawing
W1G 180-AA01-13 24 16-28 640 3200 36 1,5 59 - 20 do 72 1,7 1
W1G 180-AA03-09 48 36-57 640 3200 36 0,75 59 - 20 do 72 1,7 1
W1G 208-BA35-52 24 16-28 1050 3500 96 4,4 74 72 2,8 2
W1G 208-BA73-52 48 36-57 1050 3500 96 2,26 74 72 2,8 2

Table. Technical data

Type Voltage
[V]		 Frequency
[Hz]		 Efficiency
[m3/h]		 Speed
[turn/min.]		 Power
[W]		 Current
[A]		 Capacitor
[µF/V]		 Noise level
[dB]		 Operation temperature
[°C]		 Weight
[kg]		 Drawing
W2D 208-BA02-01 400 Y 50/ 820 2740 60 0,15 - 67 70 2,8 2
60 920 3090 80 0,15 70
W2E 208-BA20-01 230 50/ 815 2750 67 0,33 1,5/450 68 72 2,8 2
60 925 3100 87 0,39 70
W2E 208-BA86-01 115 50/ 815 2750 67 0,7 6/220 68 72 2,8 2
60 925 3100 87 0,78 70

Drawing 1 Air flow direction V -->
Drawing 2 Air flow direction V -->

//
