Twilight sensor AR-022-DP01

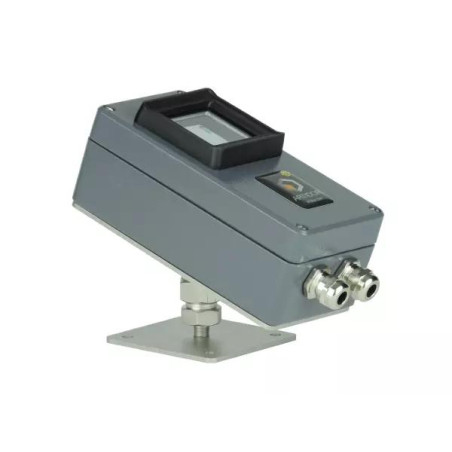

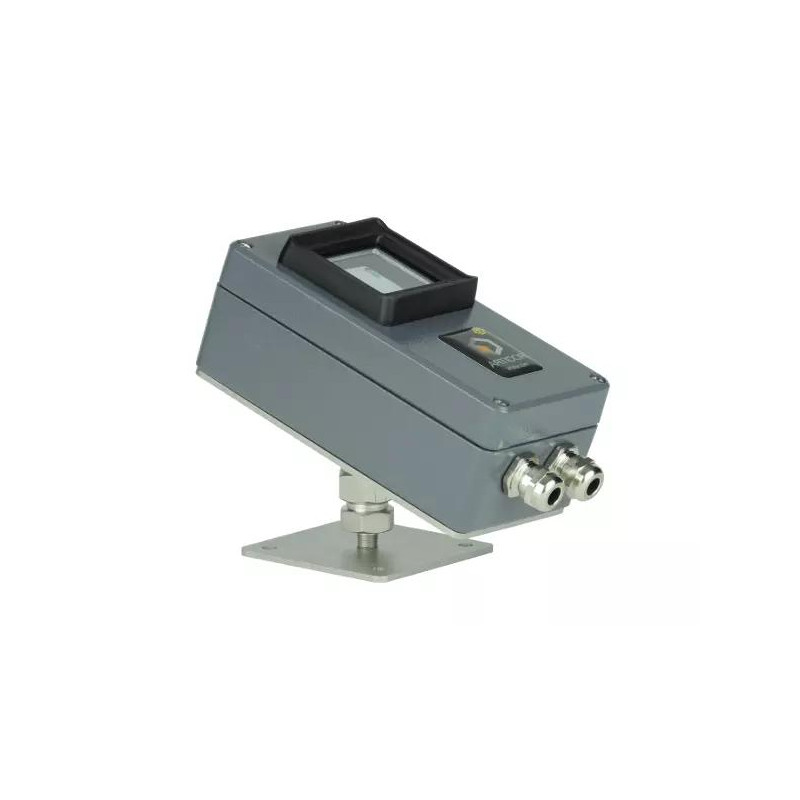

AR-022 — Explosion-proof Twilight Switch

Compact twilight switch for zones 2/22 (gas/dust), based on a highly sensitive photodiode. It automatically turns the load on/off based on lighting, has adjustable sensitivity and delay, and two outputs: a main AC with high load capacity and an additional potential-free contact. Die-cast aluminum, steel handle, and IP66 sealing ensure operation in harsh industrial environments.

Parameters and functions

• Ex marking (ATEX): II 3G Ex nR IIC T6 Gc • II 3D Ex tc IIIC T80°C Dc
• Light sensitivity (adjustable): 10–300 lx
• Operation delay: ±1 min
• Main output (AC1): up to 4,000 VA (resistive and slightly inductive loads)
• Rated current 250 VAC: 16 A (continuous)
• Additional Output: 24 VDC / 2 A potential-free contact Protection rating: IP66 according to EN 60529 Housing and mounting: RAL 7015 cast aluminum, polyamide frame, impact-resistant glass, stainless steel bracket Processing: 2 × M20 (cables Ø 6–14 mm) Technical data Explosion protection II 3G Ex nR IIC T6 Gc; II 3D Ex tc IIIC T80°C Dc European Directives2014/34/EU (ATEX 114); 2014/30/EU (EMC) StandardsEN 60079-0:2018; EN 60079-15:2010; EN 60079-31:2014 Photosensitive elementPhotodiode Delay±1 minute Supply voltage230 V AC, 50 Hz Switching power AC14,000 VA OutputPower supply 230 V AC (L’, N2) and potential-free contact (1, 2) ConnectionsScrew terminals 8 × 2.5 mm² Housing MaterialCast aluminum RAL 7015; polyamide frame; impact-resistant glass Cable Entries2 × M20 (Ø 6–14 mm) Protection RatingIP66 (EN 60529) Mounting BracketStainless Steel; Ø6.5 (4×) holes, spacing 60 × 60 mm Ambient temperature-20…+50 °C Housing dimensions (L × W × H)160 × 80 × 128 mm (with handle) Weightapprox. 1.33 kg (with handle)

  Data source: "Explosion-proof twilight switch AR-022" data sheet. :contentReference[oaicite:1]{index=1}
