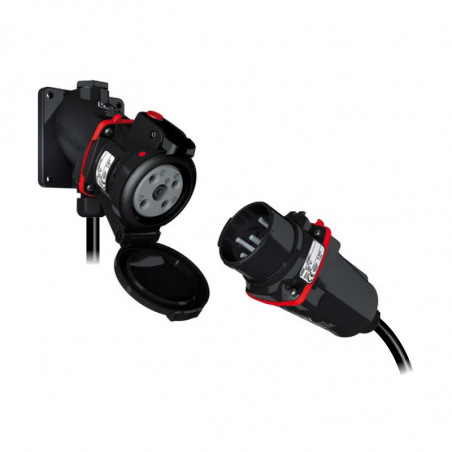

Explosion-proof disconnectable plug-and-socket devices 16A-200A for 5 contacts

  • according to IEC/EN 60309-1 and 60309-4
  • very compact design
  • polyamide housing, IK08 impact resistance
  • silver contacts with front pressure
  • certified according to ATEX 94/9/EC
  • zone 1 [&] 2, 21 [&] 22, ignition protection type "ed"
  • IEC 60079-0/-1/-7, IEC 61241-0/-1
  • DX decontactors in metal,
    16 to 200A, on request
  • IP 66/67

Basic components


3 + N + E 63 A / 400 V 2 518 017
Flush-mounted socket A/V Pinout Item no.
16–20 A / 230 V 1 + N + E 2,514,015
16–20 A / 400 V 3 + E 2,514,013
16–20 A / 400 V 2,514,017
32 A / 230 V 1 + N + E 2,534,015
32 A / 400 V 3 + E 2,534,013
32 A / 400 V 3 + N + E 2,534,017
32 A / 400 V 3 + N + E + 2 room levels 2 534 017 972
63 A / 230 V 1 + N + E 2,564,015
63 A / 400 V 3 + E 2,564,013
63 A / 400 V 3 + N + E 2,564,017
3 + N + E + 2 room levels 2 564 017 972
Other voltages (up to 750 V) and other contact combinations available on request.
Built-in socket A/V Contact layout Art. no.
16–20 A / 230 V 1 + N + E 2,518,015
16–20 A / 400 V 3 + E 2,518,013
16–20 A / 400 V 3 + N + E
32 A / 230 V 1 + N + E 2,538,015
32 A / 400 V 3 + E 2,538,013
32 A / 400V 3 + N + E 2,538,017
32 A / 400 V 3 + N + E + 2 room levels 2 538 017 972
63 A / 230 V 1 + N + E 2 568 015
63 A / 400 V 3 + E 2,568,013
63 A / 400 V 3 + N + E 2,568,017
63 A / 400 V 3 + N + E + 2 auxiliary stages 2 568 017 972
Other voltages (up to 750 V) and other contact combinations available on request.

Accessories

30° plastic surface-mount adapter Modular 70° Plastic Build-On Adapter
Load Capacity /Entry Item No. Load Capacity /Entry Item no.
for 16–20 A / M20 25 1AB53 for 16–20 A / M20 25 1AB58
for 32 A / M25 25 3AB53 25P for 32 A / M25 25 3AB58
for 63 A / M25 25 6AB53 for 63 A / M32 25 6AB58
30° plastic extension adapter 70° plastic extension modular adapter
for 16–20 A 25 1A027 for 16–20 A 25 1A757
for 32 A 25 3A027 for 32 A 25 3A757
for 63 A 25 6A027 for 63 A 25 6A757
Plastic handle
for 16–20 A / M20 25 1A753
for 16–20 A / M25 25 1A253 25P
for 32 A / M25 25 3A783
for 63 A / M32 25 6A253 32P


63 A
Rated voltage Cable cross-section, max. mm2
400 V 500 V 690 V multi-wire single wire
auxiliary contacts
DXN1 20 A 20 A - 2.5 4 -
DXN3 32 A 32 A 32 A 10 16 -
DXN3 + 2 auxiliary contacts 32 A 32 A - 10 16 2.5
DXN6 63 A 63 A 63A 16 25 -
DXN6 + 2 auxiliary contacts 63 A - 16 25 2.5
