Manufacturer: Vester

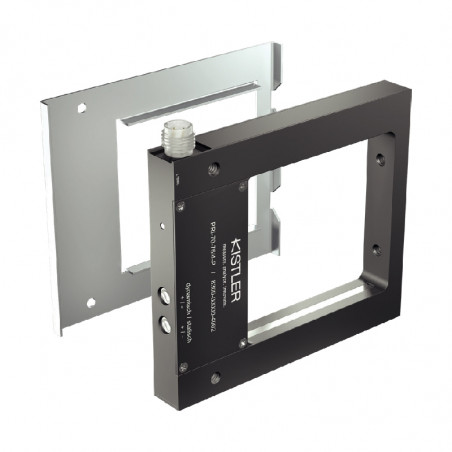

Frame light barrier (infrared radiation) - PRI-70-76 to PRI-150-150 type

Technical data

Circuit: constant light trigger
Voltage: 12...24V
Current consumption: 50...200mA
Operation: dynamic / static
Output with LED: PNP
Function: bright-dark switch
Output current: 500 mA
Pulse length: 10ms, adjustable (1-100 ms.) 10 ms
Frequency: depending on pulse length, max. 1 kHz
Operating temperature: 0...60°C
EMC: IEC 801.... CE
Type of protection: IP 65
Connection type: 3-pole M8 socket

Accuracy

Ball-Ø (dynamic) 1,5 mm: 76 - 96 - 150mm
Ball-Ø (static) 2,0 mm: 1,0 - 1,0 - 1,5mm
Light-band B 150 mm: 1,0 - 1,5 - 2,0mm

Dimensions [mm]

RAMOWE BARIERY ŚWIETLNE (PROMIENIOWANIE PODCZERWONE)TYPU PRI-70-76 DO PRI-150-150

Type Light barrier Dimensions Terminals - 4-pole M12 socket
A B
PRI-70-76/4-P 8300-00000-4002 70 76 RAMOWE BARIERY ŚWIETLNE (PROMIENIOWANIE PODCZERWONE)TYPU PRI-70-76 DO PRI-150-150
PRI-100-96/4-P 8301-00000-4002 100 96
PRI-150-150/4-P 8302-00000-4002 150 150
