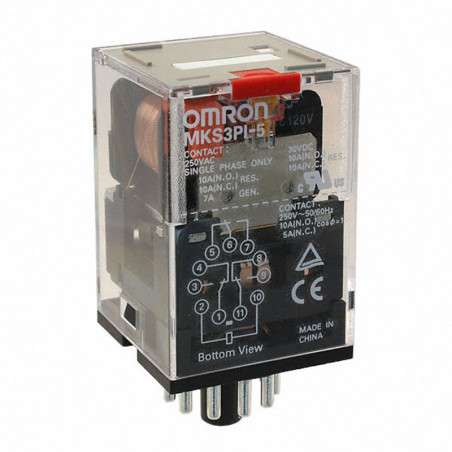

Industrial relays - MK series
Industrial relays - MK series

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: Omron

Industrial relays - MK series

Electrical data
• Connector
MK2P-S          2 switching over connectors,

MK3P5-S         3 switching over connectors,
• Connector material
Ag
• Nominal load
NO: 10 A przy 250 V AC,  10 A @ 28 V DC

NC: 5 A przy 250 V AC, 5 A @ 28 V DC
• Current
10 A
• Voltage
250 V AC, 250 V DC
• Min switching power
1 V DC, 10 mA
• Max switching power
NO:  2500 VA, 280 W, NC: 1250 VA, 140 W
• Operation time
AC: max. 20 ms / DC : max. 30 ms
• fall time
max. 20 ms
• Ambient temperature
i-10 do 40°C (bez szronienia)
• mechanical withstand
10 mln switching cycles
• Dimensions
34,5 x 34,5 x 52,5 mm
• Certificate
UL, CSA, SEV, VDE, TÜV, SE MKO


Type Nominal voltage Nominal current Resistance
MK2P-S-VD 230AC 230 VAC 11 mA 5090 0
Base
PF083A-D DIN assembled or on the base plate
PL08 solder terminal from behind

MK3P5-S-VD 24DC 24 V DC 56 mA 430 Ω
MK3P5-S-VD 230AC 230 V AC 11 mA 5090 Ω
base
PF113A-D DIN assembled or on the base plate
PF113A-N DIN assembled or on the base plate
PLE11-0 PCB assembled


//
