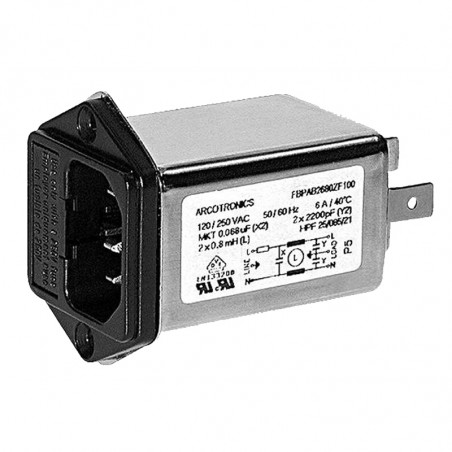

LC-RFI interference filters with a fuse - F.AP-F.BQ-F.CP-F.CQ series
  • LC-RFI interference filters with a fuse - F.AP-F.BQ-F.CP-F.CQ series

Photos are for informational purposes only. View product specification

Manufacturer: Arcotronics

LC-RFI interference filters with a fuse - F.AP-F.BQ-F.CP-F.CQ series

LC-RFI interference filters with a fuse - F.AP-F.BQ-F.CP-F.CQ series
Electrical data:
Nominal voltage(UR):
max 250V 50/60HZ
Nominal current (IN):
at ambient temperature 40°C 40°C
Leakage current (IL ):
220V, 50Hz
Voltage test (2s):
line - ground 3000 VDC or.and 800 VAC

line - line 1700 VDC
Climatic category
HPF (25/085/21)
Temperature range
-25°C - 85°C


TypeIN
[A]
L
[mH]
Cx
[µF]
Cy
[pF]
IL
[mA]
R- -.AB.2680.ZA.100 1 2x10 0,068 2x2200 2x0.2
F.- -.AB.2680.ZB.100 2 2x4 0,068 2x2200 2x0.2
F.- -.AB.2680.ZC.100 4 2x1.5 0,068 2x2200 2x0.2
F.- -.AB.2680.ZF.100 6 2x0.8 0,068 2x2200 2x0.2
F.- -.AB.2680.ZG.100 10 2x0.13 0,068 2x2200 2x0.2
Marking

Scheme

Casing F.B-

Casing F.C-


Characteristics– attenuation
..................symmetrical(line - line)
_________asymmetrical (line - ground)
