HOB 130-P current transducer
HOB 130-P current transducer

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: LEM

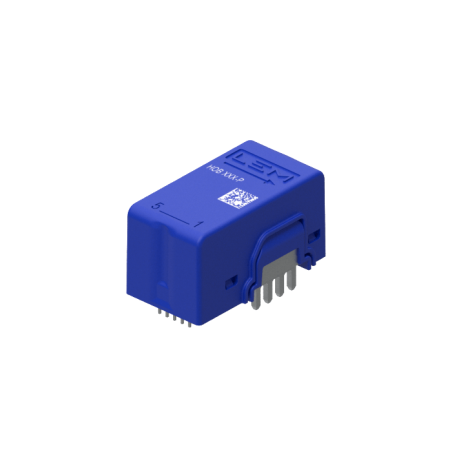

HOB 130-P current transducer

  • HOB 130-P
  • Accuracy 1.25
  • Rated Current [A] 130
  • Primary signal [AC / AC+DC / DC] AC+DC
  • Supply voltage [V] 5
  • Mounting [THT / SMD / DIN / Panel / On primary rail] THT
  • App Automotive Drive/Power Supplies/Renewable Energy/Welders/Automotive Batteries
  • Output signal type [current/voltage] voltage
  • Minimum operating temperature [°C] -40
  • Maximum operating temperature [°C] 105
  • Frequency response (-3dB) [kHz] 1000
  • Feedback loop [open / closed] // Eta technology open

Description

Designed for electronic current measurement: DC, AC, pulsed, etc., with galvanic isolation between primary and secondary circuits.

Main Features

  • Multi-range open-loop current transducer
  • Voltage output
  • Single +5 V power supply
  • Galvanic isolation between primary and secondary circuits
  • Low power consumption
  • Compact design for mounting on a THT printed circuit board
  • Factory calibrated
  • Low offset temperature drift
  • Isolation gap > 11 mm
  • Very fast response time < 200 ns
  • High cut-off frequency > 1 MHz

Applications

  • Variable Speed ​​AC Drives and Servo Motors
  • Static Converters for DC Motor Drives
  • Battery-Powered Applications
  • Uninterruptible Power Supplies (UPS)
  • Switched Mode Power Supplies (SMPS)
  • Junction Box
  • Solar Inverter on the DC Side of the Inverter (MPPT)
  • Plasma Cutter, Welding
  • Charging Station

Technical Data

Parameter Value
Maximum Supply Voltage 5.5V
Maximum Primary Conductor Temperature 120°C
Electrostatic Discharge Voltage 2kV
Supply Voltage 5V
Output Voltage Uout 0÷5V
Temperature Operating Temperature -40÷105°C
Storage Temperature -40÷105°C
Weight 30g
Relative Humidity 95%
Altitude 2000m
Rated RMS Primary Current Ip 130A
Primary Current Measuring Range Ipm ±250A
Current Consumption 22mA
Reference Voltage (Output) Uref 2.5V
Output Voltage Range at Ipm Current (Uout-Uref) ±2V
Rated Sensitivity 8 mV/A (1040mV for rated current Ip)
Sensitivity Error ±0.75%
Less
