Manufacturer: ZIEHL

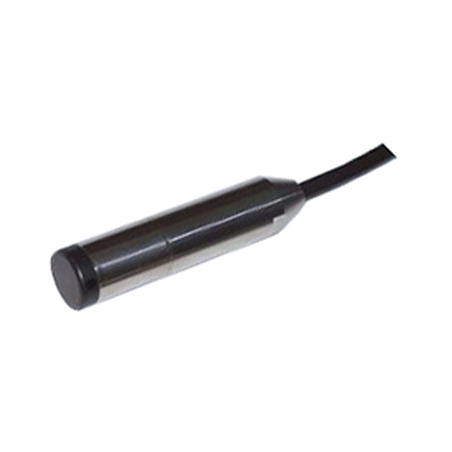

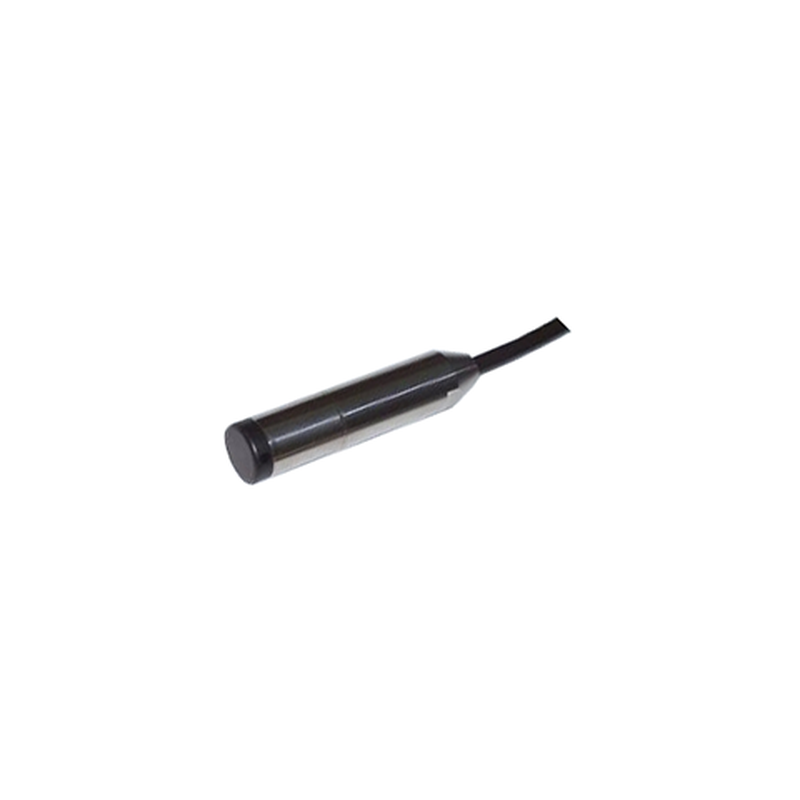

NS6123-6 - Filling Level Probe - V223470

  • V223470
  • Product Type Motor IP00, electronics IP20 / depending on mounting and position
  • Output function Analog outputs 0/4-20 mA, 0-10 V

Economy-priced probe with integrated measuring transducer for measuring filling level e.g. in tanks, cisterns or waters. Connection to ZIEHL-Web-Relay TR800WEB for monitoring and logging of filling levels. Alarms by emails when levels are reached, e.g. before tank is empty. Monitoring and display of levels with Digital Panelmeters MINIPAN 352 or other devices with input 4-20 mA. The probe for relative pressure is submersible. It is placed at the bottom of the tank and determines the level by measuring the hydrostatic pressure. The result is transmitted via signal 4-20 mA (2 wire). The cable (PUR) includes a pressure compensation capillary that compensates fluctuation of atmospheric pressure.

Applications:

  • Gasoil, diesel, used oil
  • engine oil and lube oil (fresh)
  • Rainwater in cisterns, basins and water levels in general
