Manufacturer: Ebmpapst

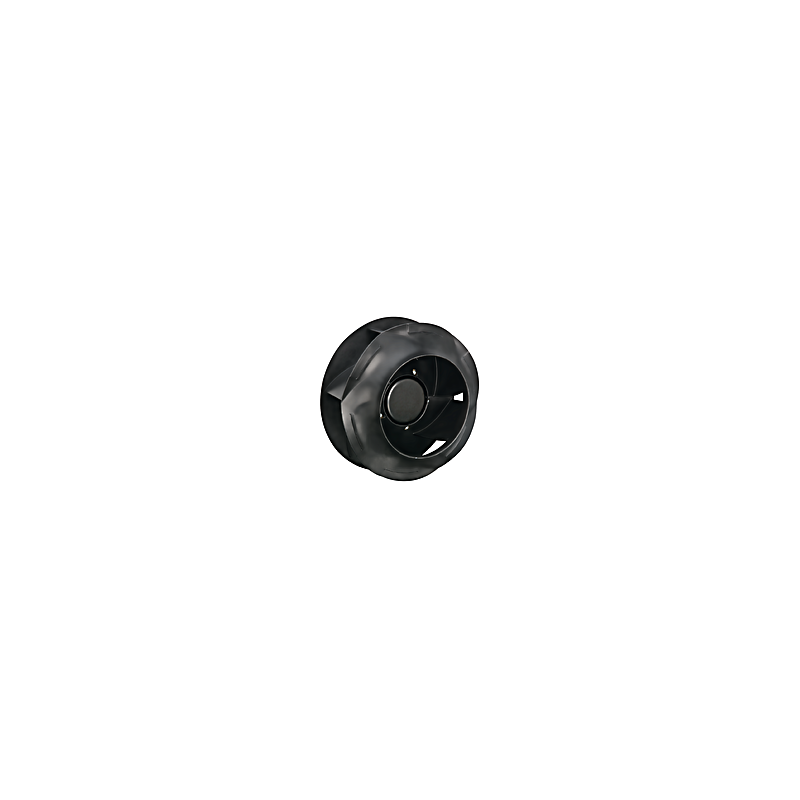

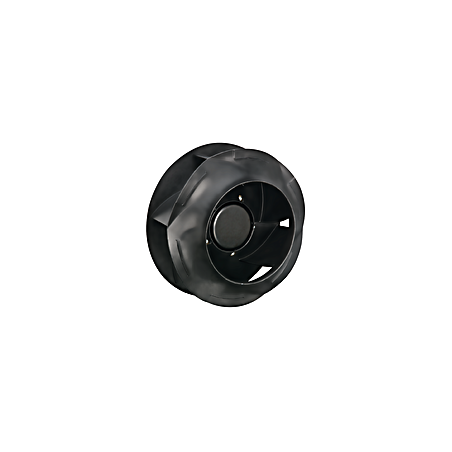

G4D180-FF24-02 AC centrifugal fan 400/400/400/400/480/480V 190/120/255/125/300/165W

  • G4D180FF2402
  • Connection D / Y / D / Y / D / Y
  • Housing material Steel sheet, galvanized
  • Protection rating IP44
  • Frequency 50 / 50 / 60 / 60 / 60 / 60
  • Input power 190 / 120 / 255 / 125 / 300 / 165
  • Phase 3~ / 3~ / 3~ / 3~ / 3~ / 3~
  • Nominal voltage 400 / 400 / 400 / 400 / 480 / 480
  • Speed 1300 / 970 / 1400 / 875 / 1500 / 1050
  • Current draw 0.4 / 0.21 / 0.45 / 0.23 / 0.47 / 0.25
  • Min. ambient temperature -40 / -40 / -40 / -40 / -40
  • Certificate EAC
  • Size 180 mm
  • Fan type AC single inlet centrifugal blower with volute housing
  • Rotor material Steel sheet, galvanized
  • Type of voltage AC / AC / AC / AC / AC / AC
  • Motor protection Automatic reset thermal cutout, lead-out, with basic insulation
  • Motor size 74
  • Insulation class F
  • Protection class against moisture (F) / environment (H) H1+
  • Motor bearing Ball bearing
  • Rotor surface Painted black
  • Max. permitted ambient temp. (transport/storage) 80
  • Min. ambient temp. (transport/storage) -40
  • Valid for approval / standard CE / - / - / - / - / -
  • Min. back pressure 0 / 0 / 0 / 0 / 0 / 0
  • Weight 6 kg
  • Compliance with standards EN 45545-2, HL3; EN 50155; EN 61373, Cat. 1B
