Manufacturer: Ebmpapst

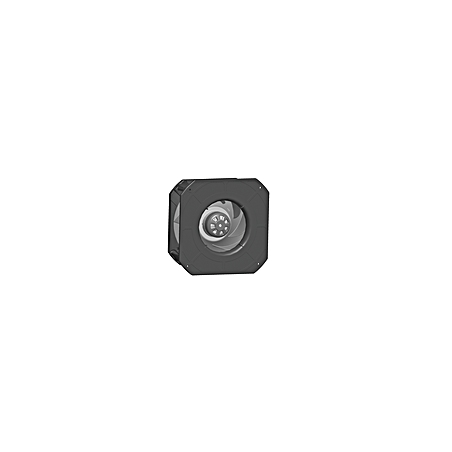

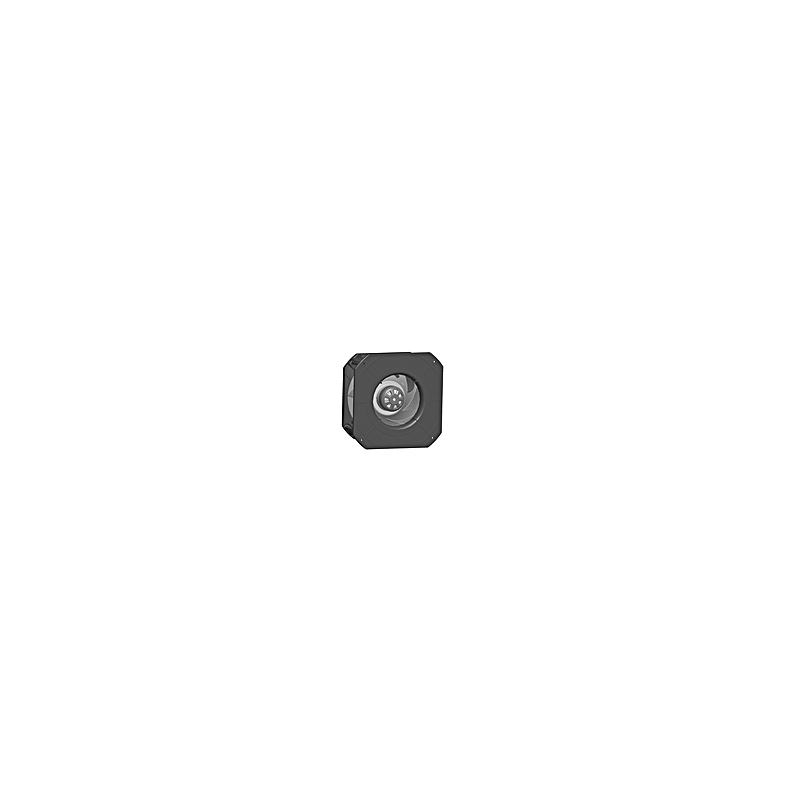

K3G250-BB09-S1 EC radial fan 110V 800W

  • K3G250BB09S1
  • Protection rating IP55
  • Frequency DC
  • Input power 800
  • Nominal voltage 110
  • Speed 3600
  • Current draw 7.3
  • Max. ambient temperature 60
  • Certificate EAC
  • Size 250 mm
  • Fan type EC single-inlet centrifugal fan with mounting panel
  • Voltage range 77 ... 138
  • Rotor material Aluminum sheet
  • Type of voltage DC
  • Motor protection Thermal Overload Protection (TOP) connected internally
  • Motor size 84
  • Insulation class F
  • Protection class against moisture (F) / environment (H) H3
  • Motor bearing Ball bearing / (sealed)
  • Rotor surface Painted black
  • Electronics housing material Die-cast aluminum
  • Max. permitted ambient temp. (transport/storage) 80
  • Min. ambient temp. (transport/storage) -40
  • Weight 11 kg
  • Compliance with standards EN 15085-1, CPC3; EN 45545-2, HL3; EN 50155; EN 61373, Cat. 1B
