Manufacturer: Ebmpapst

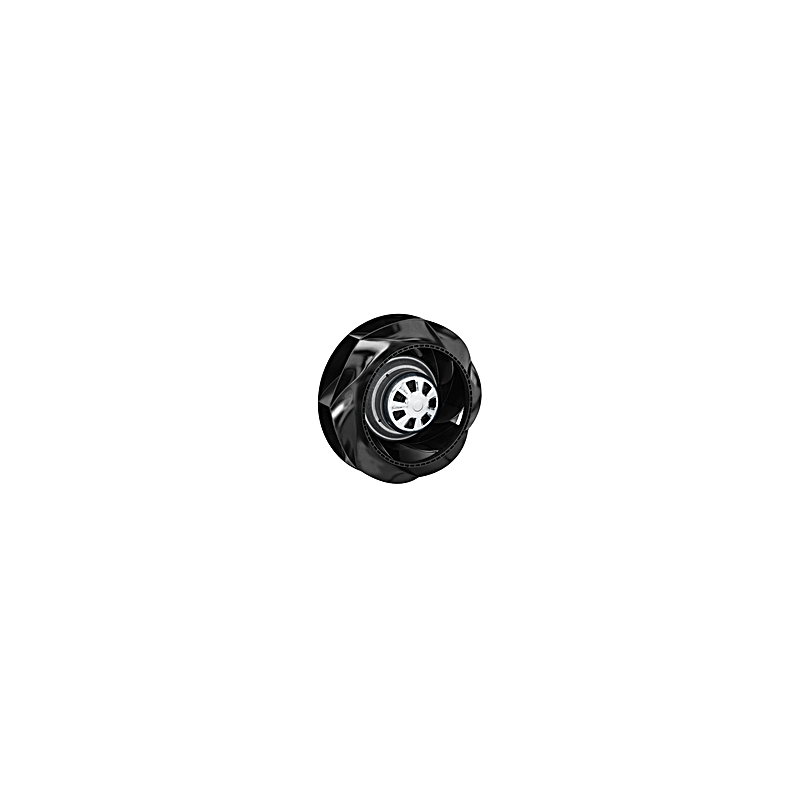

R3G175-RC05-03 EC radial fan 230V 85W

  • R3G175RC0503
  • Protection rating IP54
  • Frequency 50/60
  • Input power 85
  • Phase 1~
  • Nominal voltage 230
  • Speed 3740
  • Current draw 0.8
  • Min. ambient temperature -25
  • Max. ambient temperature 60
  • Certificate CCC / CSA C22.2 No. 77 + CAN/CSA-E60730-1 / UL 1004-7 + 60730-1
  • Size 175 mm
  • Fan type EC single-inlet centrifugal fan
  • Voltage range 200 ... 240
  • Rotor material PA plastic
  • Type of voltage AC
  • Motor protection Electronic engine protection
  • Motor size 55
  • Insulation class B
  • Protection class against moisture (F) / environment (H) H1
  • Motor bearing Ball bearing
  • Electronics housing material Die-cast aluminum
  • Max. permitted ambient temp. (transport/storage) 80
  • Min. ambient temp. (transport/storage) -40
  • Weight 1,02 kg
  • Compliance with standards EN 60034-1; EN 60204-1; EN 60335-1 / CE
