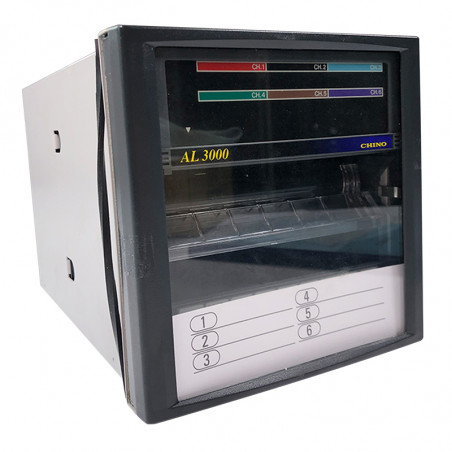

Recorders with tape record and digital indicator - AL3000

RECORDERS
Recorders with tape record and digital indicator - AL3000

AL3000 series conforming to CE, UL and CSA are 100mm pen type hybrid recorders with a simultaneous display of multi-channel data, bargraph display, alarm display/printing and other unique features. Software
packages of "KIDS" for data processing of measured values and “PASS” for programming parameters are available.

FEATURES

Simultaneous digital display/bargraph display up to 4 channels

Simultaneous 5-digit digital displays and analog bargraphs for full scale of 4 channels allow measured data to be viewed at a glance.

Universal input
The recorders accept total 56 ranges of 10 DC voltage ranges, 35 thermocouple ranges and 11 resistance thermometer ranges, and these ranges can be programmed for each channel.

Pen-lift function built-in
Pens are automatically lifted when the printing is OFF.

Pen offset correction function built-in
By correcting the mechanical position difference between each pen, the time gap on a chart paper
is corrected.

Data acquisition software package "KIDS"
The data acquisition software package "KIDS" is available for data processing by a personal computer.

Engineering software package "PASS"
The engineering software package "PASS" is available for programming parameters by using an engineering port.

CE, UL and CSA
The recorder conforms to the rules of safety standards of CE, UL and CSA (C-UL). (UL and CSA: approval pending)
The front panel is the structure with water-proof and dust-proof (IP54).

Communications interface
The communications interface of RS-232C, RS-422A or RS-485 with MODBUS protocol is available as an optional specification.

Alarm display/printing function built-in
Up to 4 kinds of alarm can be set in each input independently.. The digital display blinks for alarm activation, and the information of alarm activation/reset is printed on a chart paper.

Other features
The pen speed is 100mm/second. The illumination is built-in for easy confirmation of printed data in night or dark places. Universal power supply. Detachable terminal board for easy wirings. The transmitter power supply unit (separate purchase required) attached to the rear side of the recorder is prepared.


Technical data
-Record method: pen 1, 2, 3 or 4 pens
  head 6 colour printing head
- Accuracy: ±0.1% rage ± 1 digit
-Record time pen < 100ms
  head < 1 sec.
- Range: Programmable according to sensor characteristics.
-Printing color: Analog tracing 1st pen red, 2nd pen green, 3rd pen blue, 4th pen brown
  Head 1-red, 2-black, 3-blue, 4-green, 5-brown, 6-purple
- Record system: Record on the paper tape - width 100mm, overall tape width - 114mm, length 10m.
Chart speed: PEN 1 to 600 mm/hr, 1 to 200mm/min (Default: 20mm/hr)
  head - 1 to 1500mm/h (default - 20mm/h)
-Alarm: Individually programmable in whole range, 1 alarm per channel.
-Power supply: 100do240VAC50/60Hz
-Power consumption: pen <60VA
  printing head < 45VA
- Dimensions: W144x H144xD244mm
- IP: IP54 (front panel)

Catalogue number


Input signal
Dimensions[mm]
 Input typeRangeRangeAccuracyResolution
Thermocouple K -200...+300°C ±13,8mV ±0,1%
±1 digit
0,1°C
-200...+600°C ±27,6mV 0,1°C
-200...+1370°C ±69,0mV 1°C
E -200...+200°C ±13,8mV 0,1°C
-200...+350°C ±27,6mV 0,1°C
-200...+900°C ±69,0mV 1°C
J -200...+250°C ±13,8mV 0,1°C
-200...+500°C ±27,6mV 0,1°C
-200...+1200°C ±69,0mV 1°C
R 0...1200°C ±13,8mV 1°C
0...1760°C ±27,6mV ±0,15%
±1 digit
1°C
S 0...1300°C ±13,8mV 1°C
0...1760°C ±27,6mV 1°C
B 0...1820°C ±13,8mV 1°C
N -200...+250°C ±13,8mV ±0,15%
±1 digit
0,1°C
-200...+500°C ±27,6mV 0,1°C
-200...+1200°C ±69,0mV 1°C
W-WRe26 0...2315T ±69mV 1°C
WRe5-WRe26 0...2315T ±69mV ±0,2%
±1 digit
1°C
PtRh40-PtRh20 0...1880°C ±13,8mV 1°C
NiMo-Ni -200...+250°C ±13,8mV 0,1°C
-200...+500°C ±27,6mV 0,1°C
-200...+1200°C ±69,0mV 1°C
CR-AuFe 0...280K ±13,8mV 0,1 K
Platinel II -200...+250°C ±13,8mV ±0,15%
±1 digit
0,1°C
-200...+500°C ±27,6mV 0,1°C
-200...+1200°C ±69,0mV 1°C
U -200...+250°C ±13,8mV 0,1°C
-200...+500°C ±27,6mV 0,1°C
-200...+1200°C ±69,0mV 0,1°C
L -200...+250°C ±13,8mV ±0,1%
±1 digit
0,1°C
-200...+500°C ±27,6mV 0,1°C
-200...+1200°C ±69,0mV 1°C
T -200...+250°C ±13,8mV 0,1°C
-200...+400°C ±27,6mV 0,1°C
Thermoresistors Pt100(1) -140...+150°C 160Ω ±0,15%
±1 digit
0,1°C
-200...+300°C 220Ω 0,1°C
-200...+850°C 400Ω ±0,1% ±1 digit 0,1°C
Pt100(2) -140...+150°C 160Ω ±0,15%±1digit 0,1°C
-200...+300°C 220Ω 0,1°C
-200...+850°C 400Ω ±0,1% ±1 digit 0,1°C
JPt100 -140...+150°C 160Ω ±0,15%±1digit 0,1°C
-200...+300°C 220Ω 0,1°C
-200...+850°C 400Ω ±0,1% ±1 digit 0,1°C
Pt50 -200...649°C 220Ω ±0,1% ±1 digit 0,1°C
Pt-Co 4...374K 220Ω ±0,15%±1digit 0,1K
DC voltage -13,8...+13,8mV ±13,8mV ±0,1% ±1 digit 10mV
-27,6...+27,6mV +27,6mV 10mV
-69,0...+69,0mV ±69,0mV 10mV
-200...+200mV ±200mV 100mV
-500...+500mV ±500mV 100mV
-2...+2V ±2V 1mV
-5...+5V ±5V 1mV
-10...+10V ±10V 10mV
-20...+20V ±20V 10mV
-50...+50V ±50V 10mV
DC current depends on shunt resistor
