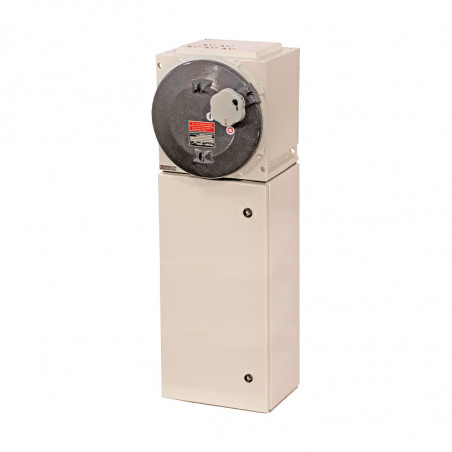

Safety switch under explosion-proof 210 A
Safety switch under explosion-proof 210 A

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: Eaton / CEAG

Safety switch under explosion-proof 210 A

Technical Specifications

Marking according to 94/9/EC (ATEX)

EC-Type Examination Certificate
IECEx Certificate of Conformity
Marking according to IECEx

Permissible ambient temperature
Rated voltage
Rated current
Frequency
Rated switching capacity
and insulation according to standard
EN 60947-3
Backup fuse


Connection terminals


Degree of protection according to EN 60529
Protection class
Gland/housing openings


Weight

Housing material

Housing color

Auxiliary contact

Locking		 D II 2G Ex de IIC T6, T5 or T41) / D II 2D IP66 T80°C/T95°C
PTB 99 ATEX 1057
BKI 06.0006
Ex de ia/ib [ia/ib] IIC T6, T5 or T4
Ex tD A21 IP66 T80°C, T95°C or T130°C
-20°C to +40°C
max. up to 690 V
max. 210 A
50/60 Hz
Ue 230 V / Ie 210 A
Ue 400 V / Ie 210 A
Ue 500 V / Ie 210 A
Ue 690 V / Ie 210 A
up to 400 V AC 250 A gL
up to 400 V AC 250 A gL
up to 500 V AC 200 A gL
Main contact 3-pole: 3 x 150 mm2/95 mm2
Main contact 6-pole: 6 x 150 mm2/2 x 95 mm2
Auxiliary contact: 2 x 4 mm2
IP54 (IP65 optional)
I
M25 (d = 8-17 mm) see order details
M63 (d = 27-48 mm) see order details
option: metal flange with 2 threaded entries
3-pole: approx. 41.5 kg
6-pole: approx. 84.5 kg
aluminum, powder-coated polyester
steel distribution box, powder-coated
housing: grey (RAL 7032)
cover: dark grey (RAL 7022)
1 x NO making, lagging; breaking, leading
1 x NC making, lagging; Delayed switch-off
can be locked in the "OFF" position
with three commercially available locks.

1) Other ambient temperature ranges are available upon request.

Ordering Information

Version Cable Entries Product No.
3-pole safety switch 210 A
Version with 2 auxiliary contacts (1 x NO; 1 x NC)
3-pole 2 x M63 / 1 x M25 EXKO 731713 S0001
3-pole emergency stop 2 x M63 / 1 x M25 EXKO 731723 S0001
6-pole safety switch 210 A
Version with 2 auxiliary contacts (1 x NO; 1 x NC)
6-pole 4 x M63 / 1 x M25 EXKO 731716 S0001
6-pole emergency stop 4 x M63 / 1 x M25 EXKO 731726 S0001

Customized version available upon request, Ex ia auxiliary contacts available.

Dimensions [mm]
