Semiconductor AC and DC relays with interface for DIN bus
  • Semiconductor AC and DC relays with interface for DIN bus

Photos are for informational purposes only. View product specification

Manufacturer: Crydom

Semiconductor AC and DC relays with interface for DIN bus

Technical data
• DIN assembly
• Relay width 6.2mm
• Load capacity 3.5A/24VDC, 0.1A/48VDCor  2A/240VAC
• Control voltage 5VDC, 24VDC, 120VAC or 220VAC
• LED indication of control voltage
• AC switch for zero crossing turning on

AC relay
MarkingInput dataOutput dataI2t
[A2s]
Control voltage
[V]
Input current
[mA]
Load current 40OC
[ARMS]
Voltage range
[VRMS]
Max voltage
[Vpeak]
Test curren [A peak]

DRA-CN240A05

3-12VDC 15mA/5VDC 2A 24-250VAC 600VAC 115A/(20ms) 260

DRA-CN240A24

15-30VDC 7mA/24VDC 2A 24-250VAC 600VAC 115A/(20ms) 260

DC relay
MarkingInput dataOutput dataTest current [A peak]
Control voltage
[V]
Input current
[mA]
Load current @ 40OC
[ARMS]
Voltage range
[VRMS]
T
turn on
T
turn off

DRA-CN024D05

3-12VDC 10mA/5VDC 3.5A 0-24VDC 120µs 100µs 9A(10ms)

DRA-CN024D24

15-30VDC 9mA/24VDC 3.5A 0-24VDC 350µs 80µs 9A(10ms)

DRA-CN048D05

3-12VDC 6mA/5VDC 0.1A 0-48VDC 20µs 130µs 300mA(10ms)

DRA-CN048D24

16-30VDC 7mA/24VDC 0.1A 0-48VDC 20µs 130µs 300mA(10ms)

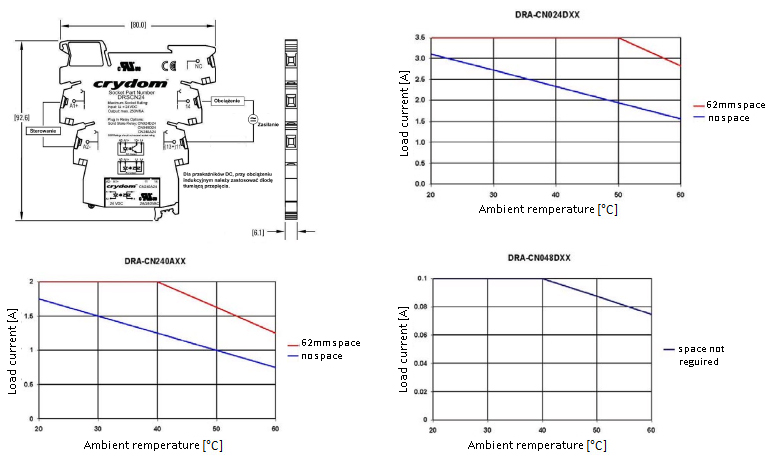

Dimensions [mm] and charts
