Manufacturer: Sirena

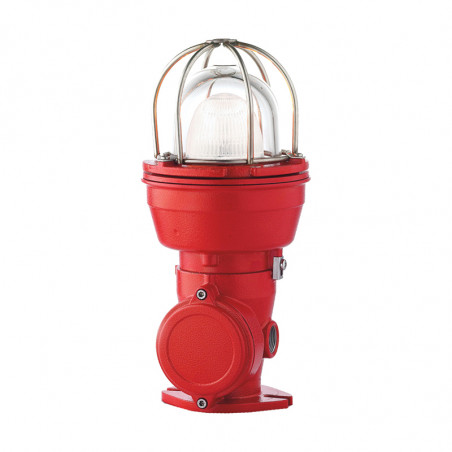

Light signaler EX 070 FLR S

Multifunctional mid-range warning light.


Integrated mid-range LED warning light, ideal for warning of a dangerous situation or a change in machine operating conditions in explosive atmospheres. Designed in accordance with ATEX regulations, the FLR S can be used in Group II, Zone 1, 2, 21, and 22 hazardous areas.

Equipped with an electronic SMD LED circuit, the FLR S is particularly resistant to vibration, ensuring longer product life and significantly reduced maintenance costs.

Multifunctional product offering three different lighting options: steady, flashing, and rotating. When ordering, please specify the desired light setting.


Technical Specifications

ATEX feature II 2G Ex db eb IIC T6 Gb
II 2D Ex tb IIIC T85 °C Db IP66
Operating mode continuous
Protection level IP66
Operating Temperature Range -25°C to +50°C
Alarm Levels 1
Voltage 12/24V, 90/240V
Frequency 50/60Hz
Available lampshade colors white, yellow, orange, red, green, blue
Base material aluminum
Mounting screw (screws not included)
Source Lights LED
Rotation Speed ​​(RPM) 140 ±10
Light Flashes Per Minute (FPM) 3x 85 ±10
