Silicone washers
  • Silicone washers

Photos are for informational purposes only. View product specification

Manufacturer: ALUTRONIC

Silicone washers

Silicone washersJ
SI 488, SI 489
technical data
For casing:
TO 220
thickness
SI 488 0,18mm

SI 489 0,23mm
Rth:
SI 488 1,25 K/W

SI 489 1,50 K/W
Dielectric withstand

SI 488 4 KV

SI 489 5 KV
SI 487/S, SI 498/S
technical data
For casing:
TO 220
thickness
SI 487/S 0,18mm

SI 498/S 0,23mm
Rth:
SI 487/S 1,30 K/W

SI 498/S 1,60 K/W
Dielectric withstand

SI 487/S 4 KV

SI 498/S 5 KV

SI 490
technical data
For casing:
TOP 3 (TO 218)
thickness
SI 490 0,18mm

SI 491 0,23mm
Rth:
SI 490 0,9 K/W

SI 491 1,0 K/W
Dielectric withstand

SI 490 4 KV

SI 491 5 KV
SI 492
technical data
For casing:
multiwatt
thickness
0,18mm
Rth:
0,8 K/W
Dielectric withstand 4 KV


SI 485
technical data
For casing:
SOT 32
thickness
0,18mm
Rth:
3,0 K/W
Dielectric withstand 4 KV

SI 480
technical data
For casing:
TO 3
thickness
0,18mm
Rth:
0,33 K/W
Dielectric withstand 4 KV


SI 497, SI 499
technical data
Pod oscylatory kwarcowe.

thickness
SI 497 0,18mm

SI 499 0,23mm
Dielectric withstand 5 KV

SI 6018/S, SI 6023/S
technical data
thickness


SI 6018/S 0,18mm

SI 6023/S 0,23mm
One side
Self stick

SI 4018, SI 4018/S; SI 4023, SI 4023/S
technical data
thickness
SI 4018 0,18mm

SI 4018 0,23mm

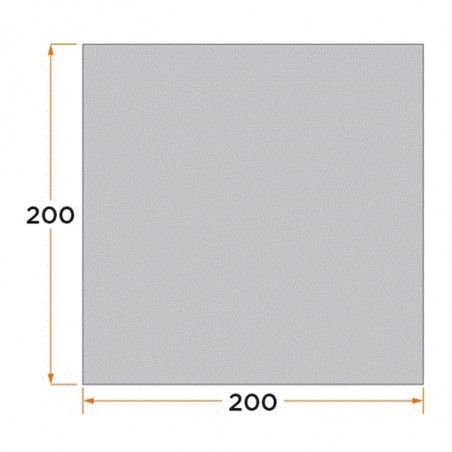

Gabaryty:
200x200mm

It is possible to made according to customers project




Uwaga:
W przypadku braku na magazynie obowiązuj minimalne ilości do zamówienia
