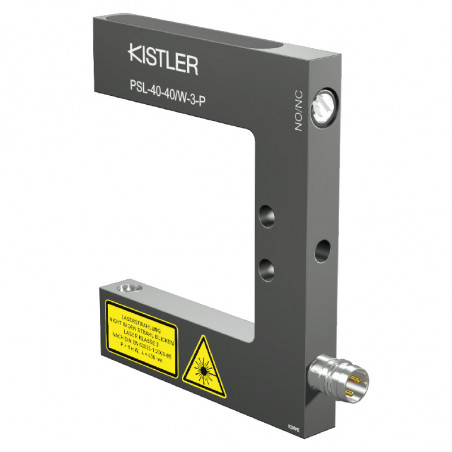

Slotted light barrier (laser light) type PSL and PKL
  • Slotted light barrier (laser light) type PSL and PKL

Photos are for informational purposes only. View product specification

Manufacturer: Vester

Slotted light barrier (laser light) type PSL and PKL

Technical data

Circuit: type PSL... - constant light trigger
type PKL... - laser chopped light trigger
Wave lenght: red light LED 650 nm
Light beam diameter: 0,2mm
Laser capacity: laser-class 2, < 1 mW
Voltage: 12...30V
Current consumption: max 60mA
Operation: static
Output with LED: PNP
Function: bright-dark switch
Output current: 500 mA
Repeatability: < 0,02mm
Frequency: > 1kHz
Operating temperature: 0...45°C
EMC: IEC 801.... CE
Type of protection: IP 65
Connection type: type PSL... - 3-pole M8 socket
type PKL... - cable 1,5m
Fork depth: type PSL... - 8mm
type PKL... - 10mm

Accuracy

type PSL...
gap width A: 10 - 40 mm,
element diameter: 0,2 mm.

type PKL...
gap width A: 20 - 30 - 50 - 80 mm,
element diameter: 0,2 - 0,3mm.

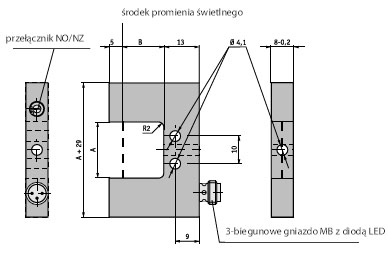

Dimensions [mm]

PSL...
PSL-10-30 DO PSL-40-80 ORAZ PKL-20 DO PKL-80 wymiary PSL
PKL...
PSL-10-30 DO PSL-40-80 ORAZ PKL-20 DO PKL-80 wymair PKL

Type Light barrier Dimensions Terminal 3-pole M8 socket
A B
PSL-10-30/3-P 6532-00000-3002 10 30 PSL-10-30 DO PSL-40-80 ORAZ PKL-20 DO PKL-80
PSL-20-30/3-P 6534-00000-3002 20 30
PSL-25-80/3-P 6560-00000-3002 25 80
PSL-30-30/3-P 6536-00000-3002 30 30
PSL-30-60/3-P 6555-00000-3002 30 60
PSL-40-40/3-P 6557-00000-3002 40 40
PSL-40-80/3-P 6559-00000-3002 40 80
PKL-20 6533-00000-3022 20 20
PKL-30 6536-00000-3022 30 30
PKL-50 6574-00000-3022 50 50
PKL-80 6576-00000-3022 80 50
