Manufacturer: SALTEK

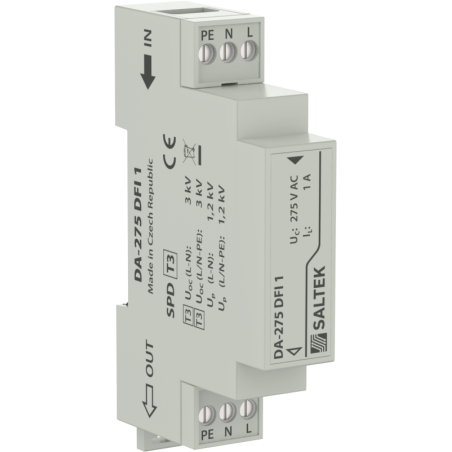

DA-275 DFI 1 - Surge protector - SPD

  • DA-275 DFI 1
  • Rated voltage 230 V AC
  • Protection rating IP 20
  • Type of SPD T3
  • Type of network TN
  • Remote indication no
  • Maximum operating voltage 275.00 V AC
Parameter name Parameter value
Type of SPD T3
Mounting DIN rail 35 mm
Nominal voltage Un 230 V AC
Maximum operating voltage Uc 275.00 V AC
Nominal load current IL 1.000 A
Type of network TN
Maximum overcurrent protection 1 A gL/gG or C 1 A
Filter attenuation at 1MHz (50 Ω//50 Ω/) unsymmetrical 50 dB
Nominal discharge current (8/20 µs) L-N In 1.50 kA
Nominal discharge current (8/20 µs) N-PE In 1.50 kA
Test voltage L-N Uoc 3.0 kV
Test voltage N-PE Uoc 3.0 kV
Voltage protection level mode L-N Up 1.20 kV
Voltage protection level mode N-PE Up 1.20 kV
Response time L-N ta 25 ns
Response time N-PE ta 100 ns
Cross-section of connected conductors solid (max) 4.00 mm2
Cross-section of connected conductors stranded (max) 2.50 mm2
Fault indication supply interruption
Remote indication no
Degree of protection IP 20
Range of ambient temperatures (min/max) -40 / 80 °C
Humidity 5 - 95 %
According to standard EN 61643-11:2012, IEC 61643-11:2011
ETIM Class EC000942
Customs tariff number 85363010
EAN 8595090512059
