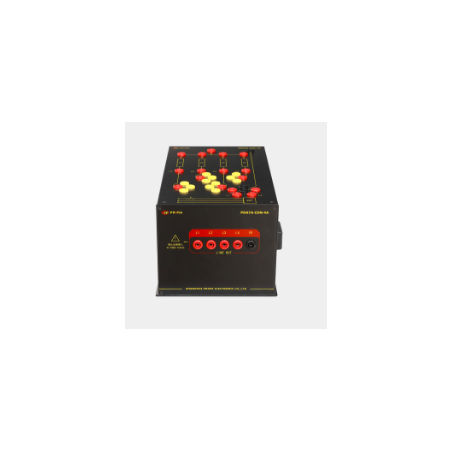

  • PDATA-CDN-4A

PDATA-CDN-4A is a specialized surge protection signal network designed to perform surge immunity tests (SUG) within the framework of electromagnetic compatibility. It is used in asymmetric signal networks to simulate lightning surges, enabling surge tests on the communication ports of the device under test.

Technical Data

Parameter Value
Product Model PDATA-CDN-4A
Open Circuit Voltage 1.2/50 micro;s; 10/700 micro;s
Short Circuit Current 8/20 micro;s; 5/320 microns
Maximum Voltage 6.0 kV
Current Limiting Resistors 25, 40, 80, 160
Network Isolation Choke 20 mH
Coupling System 0.5 micro F, 90 V, Gas Discharge Tube
Communication 100 M
