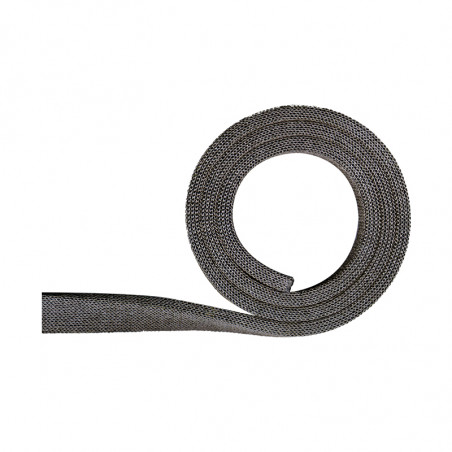

Synthetic yarn knitted gaskets
  • Synthetic yarn knitted gaskets

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: TEMAS

Symptoms from synthetic yarn

  • silver plated synthetic yarn knitted and bonded over elastomer
  • optimal electrical conductivity of every single fiber
  • high coverage knitted yarn for wide contact surface and shielding
  • smooth and soft surface gaskets
  • self-terminating cut ends
  • pressure sensitive adhesive
  • continuous or cut-to-length gaskets
  • shielding efficiency as high as 100 db in a frequency range of 1 MHz to 1gHz (e-field)

Standard core material:

  • NEOPRENE SPONGE.
  • Other core materials available upon request
EPDM



Round

Rectangular

D-section

Uszczelki z przędzy syntetycznej

Uszczelki z przędzy syntetycznej

Uszczelki z przędzy syntetycznej

P/N Diameter
[mm]

YTE.016

1.6

YTE.024

2.4

YTE.032

3.2

YTE.048

4.8

YTE.064

6.4

YTE.080

8.0

YTE.095

9.5

YTE.111

11.1

YTE.127

12.7

YTE.159

15.9

YTE.191

19.1
P/N Height
[mm]
Width
[mm]

YRE.024.024

2.4 2.4

YRE.024.048

2.4 4.8

YRE.024.064

2.4 6.4

YRE.032.032

3.2 3.2

YRE.032.064

3.2 6.4

YRE.032.080

3.2 8.0

YRE.048.048

4.8 4.8

YRE.048.080

4.8 8.0

YRE.048.127

4.8 12.7

YRE.064.064

6.4 6.4

YRE.064.127

6.4 12.7

YRE.080.127

8.0 12.7

YRE.095.127

9.5 12.7
P/N Height
[mm]
Width
[mm]

YDE.048.064

4.8 6.4

YDE.064.095

6.4 9.5

YDE.064.127

6.4 12.7

YDE.095.127

9.5 12.7
