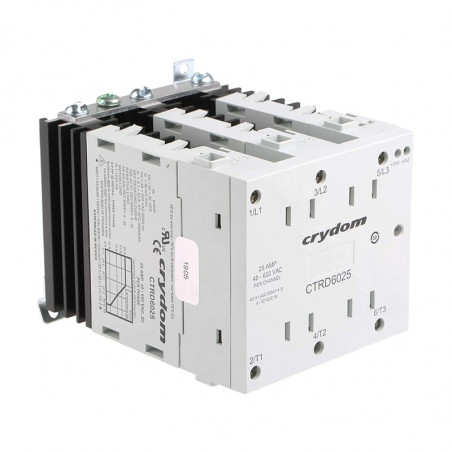

Three phase semiconductor relays with radiator for DIN bus
  • Three phase semiconductor relays with radiator for DIN bus
  • Three phase semiconductor relays with radiator for DIN bus
  • Three phase semiconductor relays with radiator for DIN bus

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: Crydom

Three phase semiconductor relays with radiator for DIN bus

Marking Input data Output data I2t
[A2s]
Control voltage
[V]
Input current
[mA]
Load current @ 40OC
[ARMS]
Voltage range
[VRMS]
Max voltage
[Vpeak]
ax current [A peak]
CTRD6025 4-32VDC 62mA 25A 48-600VAC 1200V 300A(20ms) 370
CTRB6025 90-140VAC 19mA 25A 48-600VAC 1200V 300A(20ms) 370
CTRC6025 180-280VAC 24mA 25A 48-600VAC 1200V 300A(20ms) 370

Dimensions [mm]



Chart



//
