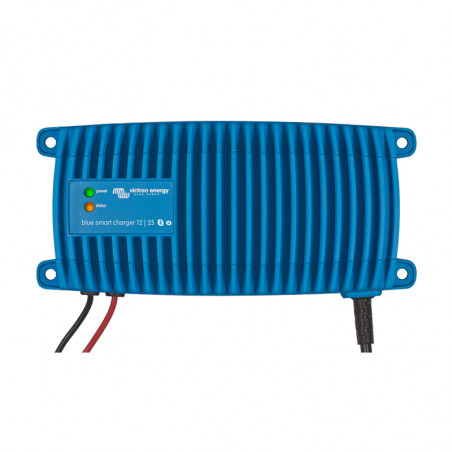

VICTRON ENERGY Blue Power Battery Charger IP67
  • VICTRON ENERGY Blue Power Battery Charger IP67

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: Victron energy


Microprocessor controlled Blue Power Charger

  • Protection category IP67
  • Fanless cooling
  • Advanced charge algorithm
  • LED status indication
  • High efficiency

Completely encapsulated: waterproof, shockproof and ignition protected
Water, oil or dirt will not damage the Blue Power IP67 Charger. The casing is made of cast aluminium and the electronics are moulded in resin.

Start interrupt
The models with suffix (1+Si) feature a second current limited output which is always powered as long as 180 – 265 VAC is present on the input. This output can for example be used to prevent starting of a vehicle before unplugging the battery charger (start interrupt function).

The highest efficiency ever!
Setting a new industry standard: with 92% efficiency or better, these chargers waste three to four times less heat.
And once the battery is fully charged, power consumption reduces to less than a Watt, some five to ten times better than the industry standard.

Adaptive 4-stage charge algorithm: bulk – absorption – float – storage
The Blue Power Charger features a microprocessor controlled ‘adaptive’ battery management. The ‘adaptive’ feature will automatically optimise the charging process relative to the way the battery is being used.

Less maintenance and aging when the battery is not in use: the Storage Mode
The storage mode kicks in whenever the battery has not been subjected to discharge during 24 hours. In the storage mode float voltage is reduced to 2,2 V/cell (13,2 V for a 12 V battery) to minimise gassing and corrosion of the positive plates. Once a week the voltage is raised back to the absorption level to ‘equalize’ the battery. This feature prevents stratification of the electrolyte and sulphation, a major cause of early battery failure.

Protected against overheating
Can be used in a hot environment such as a machine room. Output current will reduce as temperature increases up to 60°C, but the charger will not fail.

Two LEDs for status indication
Yellow LED: bulk charge (blinking fast), absorption (blinking slow), float (solid), storage (off)
Green LED: power on

Blue Power charger IP67

Blue Power
IP 67
Charger 12/7

Blue Power
IP 67
Charger 12/13

Blue Power
IP 67
Charger 12/17

Blue Power
IP 67
Charger 12/25

Blue Power
IP 67
Charger 24/5

Blue Power
IP 67
Charger 24/8

Blue Power
IP 67
Charger 24/12

Input voltage range and frequency 180-265 VAC 45-65 Hz
Efficiency 93% 93% 95% 95% 94% 96% 96%
No load power consumption (W) 0.5 0.5 0.5 0.5 0.5 0.5 0.5
Charge voltage 'absorption' (V DC) 14,4 14,4 14,4 14,4 28,8 28,8 28,8
Charge voltage 'float' (V DC) 13,7 13,7 13,7 13,7 27,6 27,6 27,6
Charge voltage 'storage' (V DC) 13,2 13,2 13,2 13,2 26,4 26,4 26,4
Charge current (A) 7 13 17 25 5 8 12
Charge algorithm 4-stage adaptive
Can be used as power supply yes
Protection Battery reverse polarity (fuse) Output short circuit Over temperature
Operating temp. range -20 to +60°C (full rated output up to 40°C)
Humidity Up to 100%
Start interrupt option (Si) Short circuit proof, current limit 0,5 A Output voltage: max one volt lower than main output
Material [&] Colour aluminium (blue RAL 5012)
Battery-connection Black and red cable of 1,5 meter
230 V AC-connection Cable of 1,5 meter with CEE 7/7 plug
Protection category IP67
Weight (kg) 1,8 1,8 2,4 2,4 1,8 2,4 2,4
Dimensions (h x w x d in mm) 85 x 211 x 60 85 x 211 x 60 99 x 219 x 65 99 x 219 x 65 85 x 211 x 60 99 x 219 x 65 99 x 219 x 65
Safety EN 60335-1, EN 60335-2-29
Emission Immunity EN 55014-1, EN 61000-6-3, EN 61000-3-2
Automotive Directive EN 55014-2, EN 61000-6-1, EN 61000-6-2, EN 61000-3-3
