3RD GENERATION OF IGBT MODULES - U SERIES

Table. Electrical data

TypeMaximum parametersVce(sat)Casing
Vces
[V]
Ic
[A]
Pt
[W]
@ Tj=25°C
[V]
600V
CM75BU-12H 600 75 310 2,4 U1
CM75DU-12H 600 75 310 2,4 U8
CM75E3U-12H 600 75 310 2,4 U8
CM75TU-12H 600 75 310 2,4 U4
CM100BU-12H 600 100 400 2,4 U1
CM100DU-12H 600 100 400 2,4 U8
CM100E3U-12H 600 100 400 2,4 U8
CM100TU-12H 600 100 400 2,4 U4
CM150DU-12H 600 150 600 2,4 U8
CM150E3U-12H 600 150 600 2,4 U8
CM150TU-12H 600 150 600 2,4 U5
CM200DU-12H 600 200 650 2,4 U8
CM200E3U-12H 600 200 650 2,4 U8
CM200TU-12H 600 200 650 2,4 U5
CM300DU-12H 600 300 890 2,4 U2
CM300E3U-12H 600 300 890 2,4 U2
CM400DU-12H 600 400 1130 2,4 U2
CM600HU-12H 600 600 1560 2,4 U6
1200V
CM50BU-24H 1200 50 400 2,9 U1
CM50DU-24H 1200 50 400 2,9 U8
CM50E3U-24H 1200 50 400 2,9 U8
CM50TU-24H 1200 50 400 2,9 U4
CM75DU-24H 1200 75 600 2,9 U8
CM75E3U-24H 1200 75 600 2,9 U8
CM75TU-24H 1200 75 600 2,9 U5
CM100DU-24H 1200 100 650 2,9 U8
CM100E3U-24H 1200 100 650 2,9 U8
CM100TU-24H 1200 100 650 2,9 U5
CM150DU-24H 1200 150 890 2,9 U2
CM150E3U-24H 1200 150 890 2,9 U2
CM200DU-24H 1200 200 1130 2,9 U2
CM300DU-24H 1200 300 1130 2,9 U3
CM400HU-24H 1200 400 2100 2,9 U6
CM600HU-24H 1200 600 3100 2,9 U7








Net price in

Configuration [3]

Voltage VCES [3]

Collector current IC [4]

Manufacturer [1]

Photo Manufacturer No.
Manufacturer
Catalog No.
Product type Voltage VCES Collector current IC Configuration Check stock aviability Quantity [pcs.] Net price $ [USD] / pcs. Order
Check
0
from 1 680.00
Check
0
from 1 550.00
Check
0
from 1 440.00
Check
0
from 1 670.00
Check
0
from 1 950.00

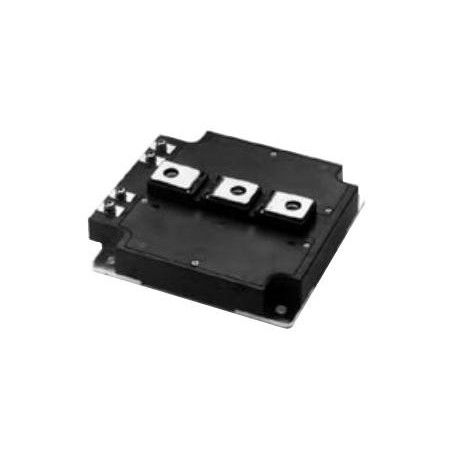

CM800DU-12H IGBT module | Mitsubishi

CM800DU-12H | Mitsubishi
CM800DU-12H | Mitsubishi

Manufacturer No.: CM800DU-12H

Catalog No.: C-X-X-060869

Manufacturer: Mitsubishi

Catalogue data

Voltage VCES
600 V
Collector current IC
800 A
Configuration
półmostek

Price $ [USD] / pcs.

Quantity [pcs.] Net price tax_class
from 1 950,00 PLN 1.168,50 PLN

Order

Stock aviability: Check
0
