Commandcase - Control housing

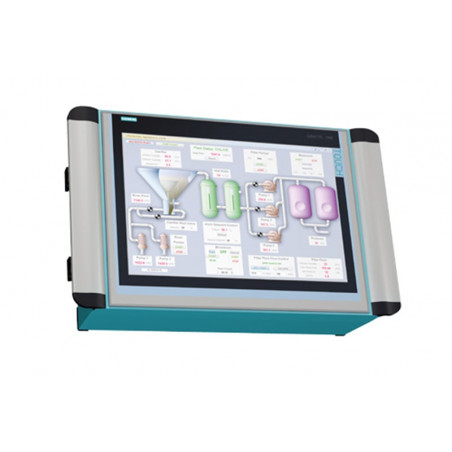

commandCASE is a functional, economical, and elegant control enclosure for electrical and electronic applications. Its depth makes it ideal for connection to a support arm system. The commandCASE is available in three versions: with hinges and a snap-in connection (also lockable), with hinges and a screw connection, or as a fully screwed version with a lid retainer to relieve the load on fixed components in the enclosure. The enclosure already offers a built-in recess for mounting membrane keyboards, front panels, or for mounting a control panel. The rear side features screw channels with protective covers that also serve as edge protection. Numerous mounting lugs are available on the top and bottom for attaching fixed components. We also offer mounting plates, matching cable glands, and other accessories.


Dimensions

Type Part No. Length D Width W Height W Weight (g) Mount Point D E Mount Point
CC 200 193.200.000 230 200 120 2466 212 144 Download
CC 202 193.202.000 330 200 120 3038 312 144 Download
CC 250 193.250.000 280 250 120 3145 262 194 Download
CC 252 193.252.000 380 250 120 3804 362 194 Download
CC 300 193.300.000 330 300 120 4134 312 244 Download
CC 302 193.302.000 430 300 120 4872 412 244 Download
CCS 200 194.200.000 230 200 120 2466 212 144 Download
CCS 202 194.202.000 330 200 120 3038 312 144 Download
CCS 250 194.250.000 280 250 120 3145 262 194 Download
CCS 252 194.252.000 380 250 120 3804 362 194 Download
CCS 300 194.300.000 330 300 120 4134 312 244 Download
CCS 302 194.302.000 430 300 120 4872 412 244 Download
CCV 200 195.200.000 230 200 120 2466 212 144 Download
CCV 202 195.202.000 330 200 120 3038 312 144 Download
CCV 250 195.250.000 280 250 120 3145 262 194 Download
CCV 252 195.252.000 380 250 120 3804 362 194 Download
CCV 300 195.300.000 330 300 120 4134 312 244 Download
CCV 302 195.302.000 430 300 120 4872 412 244 Download
A External Mount A External Mount
B Terminal strip holder B Terminal strip holder
BF Battery Compartment BF Battery Compartment
C Colored stripes covering overlays C Colored stripes/covering overlays
D Silicone cover gasket D Silicone cover gasket
DA Alu End Caps DA Alu End Caps
DH Lid Holder DH Lid Holder
DP POM Caps DP POM Caps
DV Double Bit Lock DV Double Bit Lock
EMC Shielding EMC Shielding
EP Electrolytic Polishing EP Electrolytic Polishing
F Self-adhesive front panel F Self-adhesive front panel
FE Viewfinder FE Viewfinder
H Hand screw H Hand screw
HG multiPANEL holder HG multiPANEL holder
HS Retaining Hinge HS Retaining Hinge
I Handle System I Handle System
ID Integrated cover handles ID Integrated cover handles
IN Allen screw IN Allen screw
IS Hidden External Hinge IS Hidden External Hinge
J Hand grip J Hand grip
L Anticorrosion protection L Protection Anti-corrosion
LH Printed Circuit Board Holder LH Printed Circuit Board Holder
M Mounting Plates M Mounting Plates
MH Mast Mount MH Mast Mount
P Sealing kit P Sealing kit
P 60 Desktop, depth 60 mm P 60 Desktop, depth 60 mm
P 90 Desktop, depth 90 mm P 90 Desktop, depth 90 mm
PR Profile Handle System PR Profile Handle System
Q Supporting element, transverse Q Supporting element, transverse
RS Rear panel with hinge RS Rear panel with hinge
S Hinges S Hinges
SF Snap-on Feet SF Snap-on Feet
SH Protective Cover SH Protective Cover
ST Lock with key ST Lock with key
SV Snap-in connectors SV Snap-in connectors
SZ Latch connector with lock SZ Latch connector with lock
T Support rails for serial terminals T Support rails for serial terminals
TM Keyboard/Mouse Space TM Keyboard/Mouse Space
V Screw closure with a slot V Screw / closure with a slot
VR Screwed rear panel VR Screwed rear panel
W Screw closure with socket W Screw / closure with triangular socket
WA Wall Connection WA Wall Connection
WM Angle Mounting Kit WM Angle Mounting Kit
X Screw closure with X Screw / closure with square head
Y Closure with pin Y Closure with pin
Z Closure with pin and lock Z Closure with pin and lock
ZL Cal ZL Cal
67 IP 67 Protection Rating 67 IP 67 Protection Rating
69K IP Protection Rating 69K 69K IP Protection Rating 69K
Certificates
GOST
UL (optional)
Housing sizes
6 sizes in 3 versions
Dimensions L x W x H
L x W x H 230 x 200 x 120 mm to 430 x 300 x 120 mm
Further information
Designer handle strips
Integrated recess in the lid for membrane keyboards or front panels
Polyoxymethylene (POM) caps, RAL 7016 anthracite gray
Integrated lid handle, PP (polypropylene), RAL 7040 pyrite gray
Option: Snap-on connector and hinge, narrow side (W side)
Housing
Die-cast alloy aluminum
EN AC-44300 DIN EN 1706
(GD Al Si 12/DIN 1725)
Draft angle 1° > wewnętrzne wymiary w świetle zmniejszają się do dna obudowy o 1° na obwodzie
Zamocowanie
Przy systemie ramion nośnych ROLEC lub bezpośrednie zamocowanie ścienne przy wersji z zamkiem i zawiasem ( z lub bez designerskich listew uchwytowych)
Stałe elementy
Gwint mocujący M5 przy dnie obudowy i w pokrywie
Klasa ochrony
IP 66 / EN 60529
Uszczelka
Chloroprenowa okrągła uszczelka sznurowa (CR), odporność temperaturowa: -30°C do +90°C
Opcja: Silikonowa okrągła uszczelka sznurowa, odporność temperaturowa: -50°C do +140°C
Powierzchnia
Lakierowanie proszkowe RAL 7035 jasnoszary
Opcja: specjalne kolory
Opcja: ochrona antykorozyjna
Serwis ROLEC
Skorzystaj z naszej pełnej oferty serwisowej dla gotowych do zamontowania obudów
