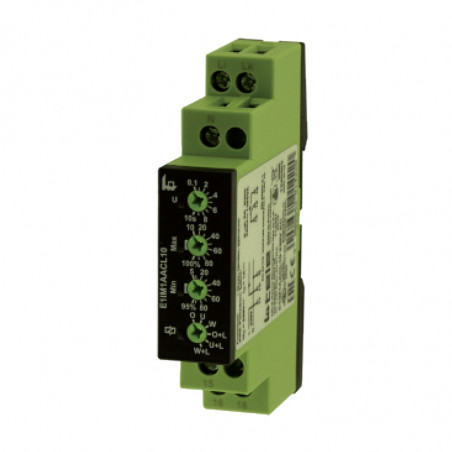

E1IM1AACL10 Single-Phase Current Monitoring Relay

Description
The TELE monitoring relay has a current range from 50mA AC to 1A AC. The user can choose from 3 functions (with or without latching) and one relay output. The E1IM1AACL10 was designed for power distribution systems and control cabinets. Its major advantage is the ability to operate on a standard 230V AC voltage. It has compact dimensions (17.5 mm wide) and is designed for mounting on a DIN rail. It can be used in a wide range of applications thanks to its EU, UL, cUL, and EAC certifications.

Features
  • OVER – overcurrent
  • UNDER – undercurrent
  • WIN – window
  • OVER+LATCH – overcurrent with latch
  • UNDER+LATCH – undercurrent with latch
  • WIN+LATCH – window with latch

Applications
  • LED lamp monitoring


Technical Data


Input Circuit
Power Supply 230V AC
Terminals Li-N
Supply Voltage Tolerance -15…15% UN
Frequency 48-63Hz AC
Diurnal Duty Cycle 100%
Reset Time 500ms
Input Waveform Sine
Start Voltage > 20% of supply voltage
Overvoltage category III (according to IEC 60664-1)
Rated impulse voltage 4kV
Output Circuit
Type 1 SPDT contact, floating
Rated Voltage 250V AC
Connection Capacity 1250VA (5A / 250V AC)
Protection 5A fast fuse link
Lifespan (mechanical) 20 x 106 operations
Lifespan (electrical) 2 x 105 operations (resistive load 1000VA)
Switching Frequency Max. 6/min (resistive load 1000VA) (according to IEC 60947-5-1)
Overvoltage category III (according to IEC 60664-1)
Rated impulse withstand voltage 4kV


Measuring circuit
Measured quantity Sinusoidal AC current 48…63Hz
Input 1A, AC
Terminals Li, Lk
Overload capacity 2A
Starting current 1s: 10A
3s: 5A
Input resistance 47mΩ
Overcurrent category III (according to IEC 60664-1)
Rated surge voltage 4kV
Indicators
Green LED – steady light Power supply voltage indicator
Red LED – steady light Restriction error indicator
Red LED – flashing Restriction time delay indicator
Yellow LED – steady light Relay output indicator


Accuracy
Basic Accuracy ≤ 5% of rated value
Setting Accuracy ±5% of rated value
Repeat Accuracy ≤ 2% of rated value
Voltage influence -
Temperature influence ≤ 0.1% / °C
Environmental Conditions
Ambient Temperature -25 to +55°C (according to IEC 60068-1)
Storage Temperature -25 to +70°C
Transport Temperature -25 to +70°C
Air humidity 15% to 85% (according to IEC 60721-3-3)
Pollution degree 2 (according to IEC 60664-1)


Appearance
Housing Material Self-extinguishing plastic
Protection Rating Housing: IP40
Terminals: IP20
Terminal Tightening Torque Max. 1Nm
Terminal Capacity 1x0.5…2.5mm2 with multi-core termination
1x4mm2 without multi-core termination
2x0.5…1.5mm2 with multi-core termination
2x2.5mm2 without multi-core termination
Assembly On DIN rail
Weight 72g


Connection




Dimensions


Less
Read more

Send an inquiry

Are you interested in this product? Do you need additional information or individual pricing?

Contact us
ASK FOR THE PRODUCT close
Thank you for sending your message. We will respond as soon as possible.
ASK FOR THE PRODUCT close
Browse
send an inquiry

Add to Wishlist

You must be logged in

  • Rated value 1A AC
  • Output 1 x przełączalne
  • Number of phases jednofazowe
  • Power supply 230V AC
  • Function zanik, asymetria, kolejność faz

E1IM1AACL10 Single-Phase Current Monitoring Relay

Description
The TELE monitoring relay has a current range from 50mA AC to 1A AC. The user can choose from 3 functions (with or without latching) and one relay output. The E1IM1AACL10 was designed for power distribution systems and control cabinets. Its major advantage is the ability to operate on a standard 230V AC voltage. It has compact dimensions (17.5 mm wide) and is designed for mounting on a DIN rail. It can be used in a wide range of applications thanks to its EU, UL, cUL, and EAC certifications.

Features
  • OVER – overcurrent
  • UNDER – undercurrent
  • WIN – window
  • OVER+LATCH – overcurrent with latch
  • UNDER+LATCH – undercurrent with latch
  • WIN+LATCH – window with latch

Applications
  • LED lamp monitoring


Technical Data


Input Circuit
Power Supply 230V AC
Terminals Li-N
Supply Voltage Tolerance -15…15% UN
Frequency 48-63Hz AC
Diurnal Duty Cycle 100%
Reset Time 500ms
Input Waveform Sine
Start Voltage > 20% of supply voltage
Overvoltage category III (according to IEC 60664-1)
Rated impulse voltage 4kV
Output Circuit
Type 1 SPDT contact, floating
Rated Voltage 250V AC
Connection Capacity 1250VA (5A / 250V AC)
Protection 5A fast fuse link
Lifespan (mechanical) 20 x 106 operations
Lifespan (electrical) 2 x 105 operations (resistive load 1000VA)
Switching Frequency Max. 6/min (resistive load 1000VA) (according to IEC 60947-5-1)
Overvoltage category III (according to IEC 60664-1)
Rated impulse withstand voltage 4kV


Measuring circuit
Measured quantity Sinusoidal AC current 48…63Hz
Input 1A, AC
Terminals Li, Lk
Overload capacity 2A
Starting current 1s: 10A
3s: 5A
Input resistance 47mΩ
Overcurrent category III (according to IEC 60664-1)
Rated surge voltage 4kV
Indicators
Green LED – steady light Power supply voltage indicator
Red LED – steady light Restriction error indicator
Red LED – flashing Restriction time delay indicator
Yellow LED – steady light Relay output indicator


Accuracy
Basic Accuracy ≤ 5% of rated value
Setting Accuracy ±5% of rated value
Repeat Accuracy ≤ 2% of rated value
Voltage influence -
Temperature influence ≤ 0.1% / °C
Environmental Conditions
Ambient Temperature -25 to +55°C (according to IEC 60068-1)
Storage Temperature -25 to +70°C
Transport Temperature -25 to +70°C
Air humidity 15% to 85% (according to IEC 60721-3-3)
Pollution degree 2 (according to IEC 60664-1)


Appearance
Housing Material Self-extinguishing plastic
Protection Rating Housing: IP40
Terminals: IP20
Terminal Tightening Torque Max. 1Nm
Terminal Capacity 1x0.5…2.5mm2 with multi-core termination
1x4mm2 without multi-core termination
2x0.5…1.5mm2 with multi-core termination
2x2.5mm2 without multi-core termination
Assembly On DIN rail
Weight 72g

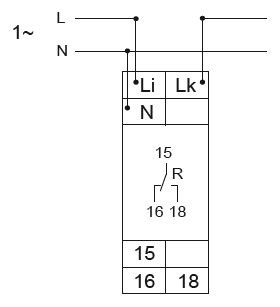

Connection
