Manufacturer: Ebmpapst

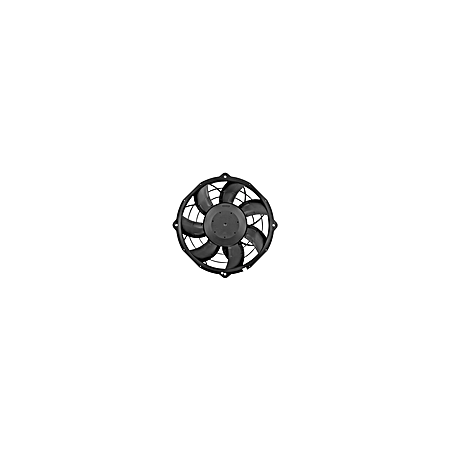

W3G300-BV25-82 EC axial fan 26V 230W

  • W3G300BV2582
  • Air flow direction V
  • Protection rating IP24 HP engine, IP6K9K electronics (mating connector installed)
  • Input power 230
  • Nominal voltage 26
  • Speed 3350
  • Current draw 9
  • Min. ambient temperature -40
  • Max. ambient temperature 85
  • Certificate EAC
  • Size 300 mm
  • Fan type EC axial with wall ring
  • Voltage range 16 ... 32
  • Rotor material PA plastic UL94 V0
  • Type of voltage DC
  • Motor size 84
  • Insulation class B
  • Protection class against moisture (F) / environment (H) H3
  • Motor bearing Ball bearing / (sealed)
  • Max. permitted ambient temp. (transport/storage) 85
  • Min. ambient temp. (transport/storage) -40
  • Fan housing material PA plastic UL94 V0
  • Weight 2,3 kg
  • Compliance with standards EN 45545-2, HL3; EN 50155; EN 61373, Cat. 1B
