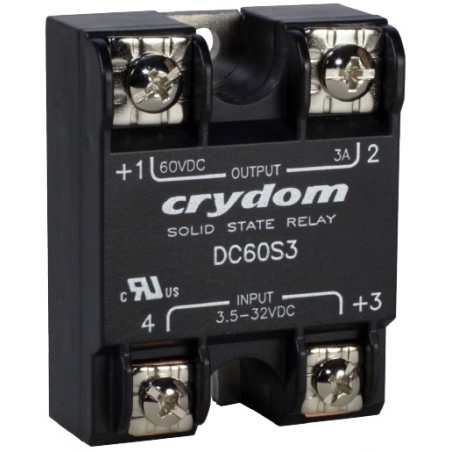

Photos are for informational purposes only. View product specification
please use latin characters
Features
- Current Range from 3A to 7A at 60VDC
- Bipolar Transistor Output
- UL Approved, CE EN60950-1 Compliant
- Improved SEMS Screws and Washer
- Redesigned Housing with Anti-Rotation Barriers
- AC and DC Control
- Epoxy-free Design
Control Voltage | 3A | 5A | 7A |
3.5-32 VDC | DC60S3 | DC60S5 | DC60S7 |
90-280VAC/VDC | DC60SA3 | DC60SA5 | DC60SA7 |
Output Specification
Description | 3A | 5A | 7A |
---|---|---|---|
Recommended Operating Voltage [Vrms] | 3-48 | 3-48 | 3-48 |
Absolute Maximum Voltage Range [Vdc] | 60 | 60 | 60 |
Maximum Leakage Current at Rated Voltage [mA] | 0.1 | 0.1 | 0.1 |
Maximum Load Current [Adc] | 3 | 5 | 7 |
Minimum Load Current [mA] | 20 | 20 | 20 |
Maximum Surge Current (10msec) [Apk] | 6 | 10 | 14 |
Maximum Voltage Drop at Rated Current [Vdc] | 1 | 1.2 | 1.3 |
Thermal Resistance, Junction-to-Case (Rjc) [°C/W] | 2 | 2 | 2 |
Minimum Thermal Dissipation Capability for Rated Current at Ambient Temperature (for maximum current = °C/W and Ta) | 5 at 60 degrees Celsius | 5 at 60 degrees Celsius | 5 at 40 degrees Celsius |
Input Specification
Description | DC Control | AC Control |
---|---|---|
Control Voltage Range | 3.5-32 VDC | 90-280 VAC |
Maximum Reverse Voltage | -32 VDC | - |
Minimum Turn-On Voltage | 3.5 VDC | 90 VAC/VDC |
Minimum Turn-Off Voltage | 1 VDC | 10 VAC/VDC |
Minimum Input Current (for Turn-On) | 2.2 mA | 2 mA |
Maximum Input Current | 25 mA | 5.5 mA |
Input Impedance | 1500 Ohm | 60K |
Maximum Turn-On Time [msec] | 0.1 | 10 |
Maximum Turn-Off Time [msec] | 0.3 | 340 |
General Specifications
Description | Parameters |
---|---|
Dielectric Strength, Input-Output-Base (50/60Hz) | 4000 Vrms |
Minimum Insulation Resistance (at 500V DC) | 109 Ohms |
Maximum Capacitance, Input-Output | 8pF |
Ambient Temperature Range (Operating) | -30 to 80 degrees Celsius |
Ambient Temperature Range (Storage) | -40 to 125 degrees Celsius |
Weight (typical) | 17 g |
Housing Material | UL94 V-0 |
Base Plate Material | Aluminium |
Input Terminal Screw Torque (Nm) | 1.5-1.7 |
Load Terminal Screw Torque Range (Nm) | 2-2.2 |
Mounting Torque Range for SSR (Nm) | 2-2.2 |
Input/Load Terminal Screw Torque Range (Nm) | 1.5-1.7 |
Humidity for IEC 60068-2-78 | 85% non-condensing |
MTBF (Mean Time Between Failures) at 40 degrees Celsius ambient | 11,641,553 hours (1,328 years) |
MTBF (Mean Time Between Failures) at 60 degrees Celsius ambient | 7,210,376 hours (823 years) |
Send an inquiry
Are you interested in this product? Do you need additional information or individual pricing?
Contact us
Features
- Current Range from 3A to 7A at 60VDC
- Bipolar Transistor Output
- UL Approved, CE EN60950-1 Compliant
- Improved SEMS Screws and Washer
- Redesigned Housing with Anti-Rotation Barriers
- AC and DC Control
- Epoxy-free Design
Control Voltage | 3A | 5A | 7A |
3.5-32 VDC | DC60S3 | DC60S5 | DC60S7 |
90-280VAC/VDC | DC60SA3 | DC60SA5 | DC60SA7 |
Output Specification
Description | 3A | 5A | 7A |
---|---|---|---|
Recommended Operating Voltage [Vrms] | 3-48 | 3-48 | 3-48 |
Absolute Maximum Voltage Range [Vdc] | 60 | 60 | 60 |
Maximum Leakage Current at Rated Voltage [mA] | 0.1 | 0.1 | 0.1 |
Maximum Load Current [Adc] | 3 | 5 | 7 |
Minimum Load Current [mA] | 20 | 20 | 20 |
Maximum Surge Current (10msec) [Apk] | 6 | 10 | 14 |
Maximum Voltage Drop at Rated Current [Vdc] | 1 | 1.2 | 1.3 |
Thermal Resistance, Junction-to-Case (Rjc) [°C/W] | 2 | 2 | 2 |
Minimum Thermal Dissipation Capability for Rated Current at Ambient Temperature (for maximum current = °C/W and Ta) | 5 at 60 degrees Celsius | 5 at 60 degrees Celsius | 5 at 40 degrees Celsius |
Input Specification
Description | DC Control | AC Control |
---|---|---|
Control Voltage Range | 3.5-32 VDC | 90-280 VAC |
Maximum Reverse Voltage | -32 VDC | - |
Minimum Turn-On Voltage | 3.5 VDC | 90 VAC/VDC |
Minimum Turn-Off Voltage | 1 VDC | 10 VAC/VDC |
Minimum Input Current (for Turn-On) | 2.2 mA | 2 mA |
Maximum Input Current | 25 mA | 5.5 mA |
Input Impedance | 1500 Ohm | 60K |
Maximum Turn-On Time [msec] | 0.1 | 10 |
Maximum Turn-Off Time [msec] | 0.3 | 340 |
General Specifications
Description | Parameters |
---|---|
Dielectric Strength, Input-Output-Base (50/60Hz) | 4000 Vrms |
Minimum Insulation Resistance (at 500V DC) | 109 Ohms |
Maximum Capacitance, Input-Output | 8pF |
Ambient Temperature Range (Operating) | -30 to 80 degrees Celsius |
Ambient Temperature Range (Storage) | -40 to 125 degrees Celsius |
Weight (typical) | 17 g |
Housing Material | UL94 V-0 |
Base Plate Material | Aluminium |
Input Terminal Screw Torque (Nm) | 1.5-1.7 |
Load Terminal Screw Torque Range (Nm) | 2-2.2 |
Mounting Torque Range for SSR (Nm) | 2-2.2 |
Input/Load Terminal Screw Torque Range (Nm) | 1.5-1.7 |
Humidity for IEC 60068-2-78 | 85% non-condensing |
MTBF (Mean Time Between Failures) at 40 degrees Celsius ambient | 11,641,553 hours (1,328 years) |
MTBF (Mean Time Between Failures) at 60 degrees Celsius ambient | 7,210,376 hours (823 years) |
