EFT/Burst Simulator PEFT-05T1

  • PEFT-05T1

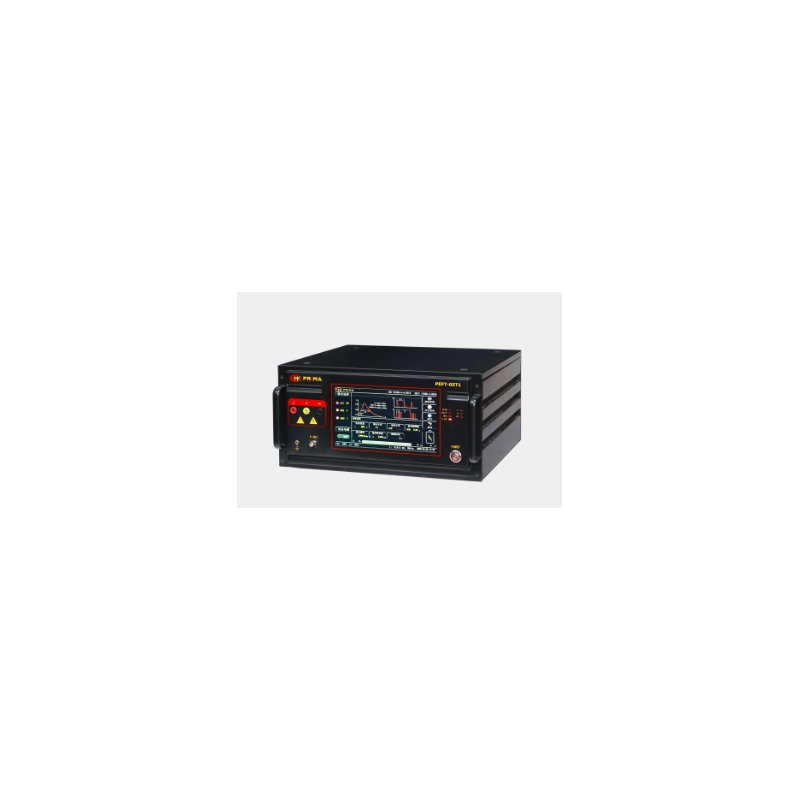

The PEFT-05T1 pulse generator has been specifically designed to meet the requirements of electrical fast transient (EFT) immunity testing. Used to evaluate the performance of power, signal, control, and ground ports in electrical and electronic devices under interference conditions caused by EFTs.

Features:

  • Ergonomic design
  • Operated via a 10.1-inch color touchscreen
  • Freely switchable positive and negative polarity
  • Switchable between Chinese and English languages
  • Modes: Custom, Enhanced, and Standard
  • Superior technology, durable
  • Maximum test voltage: up to 5kV

Standard compliance:

  • GB/T 17626.4 / IEC 61000-4-4
  • IEC / EN 61000-6-1

Parameters:

Parameter Value / Description
Output voltage range 200V ~ 5000V ±10%
Voltage Resolution 1V
Voltage Surge 1V
Voltage Accuracy < ±10%
Output Polarity +, -, +/-, -/+
T&H Built-in Thermometer and Humidity Meter
Source Impedance 50Ω
Pulse Rise Time 5ns ±30%
Pulse duration 50ns ±30% (50Ω load) 35ns ~ 150ns (1000Ω load)
Frequency range 0.1kHz ~ 1200kHz
Frequency resolution 0.1kHz
Standard Frequencies 5kHz, 100kHz
Pulse Group Duration 0.001 ~ 2550.000 ms
Pulse Group Period 300 ms (0.15 ~ 99.99 s)
Test Duration 1s ~ 9999s
Direct Output Mode Via Coaxial High Voltage Connector
Phase Sync 0° ~ 359° (for 45 Hz ~ 65 Hz) (synchronous, automatic, asynchronous)
Coupling Built-in 1-phase 3-wire coupling
Load capacity UAC MAX 240V / 16A UDC MAX 220V / 16A
