AKR 50 C420L current transducer
AKR 50 C420L current transducer

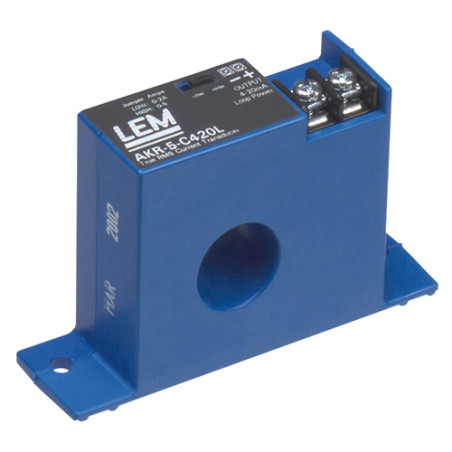

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: LEM

AKR 50 C420L current transducer

  • AKR 50 C420L
  • Accuracy 1,00%
  • Rated Current [A] 10, 20, 50
  • Primary signal [AC / AC+DC / DC] AC
  • Supply voltage [V] Loop powered
  • Mounting [THT / SMD / DIN / Panel / On primary rail] Panel/DIN
  • App Automation/Drives/Power Supplies/Renewable Energy
  • Output signal type [current/voltage] current
  • Minimum operating temperature [°C] -20
  • Maximum operating temperature [°C] 50
  • Frequency response (-3dB) [kHz] 0,4
  • Feedback loop [open / closed] // Eta technology Current transformer

Applications:

  • VFD (Variable Frequency Drive) Controlled Loads: The inverter output indicates how the motor and connected load are operating.
  • SCR Controlled Loads: Accurately measures the phase angle or SCR pulses in time-proportional (burst-firing) mode.
  • Switched-Mode Power Supplies and Electronic Ballasts: True RMS measurement is the most accurate way to measure the input power of a power supply or ballast.

Technical Specifications:

Measured quantity Current
Rated current 10, 20, 50A
Measuring range 50A
Output signal Current, DC TRMS 4-20mA
Primary signal AC
Power supply From loop
Accuracy 1%
Operating temperature -20°C…50°C
Technology Current transformer
Mounting On DIN rail
