Precise current transducers

Precision Current Transformers

Precision current transformers are dedicated to electronic measurements of current, both alternating and direct, in the range from 12.5 A to even 24 kA. Thanks to excellent linearity and high accuracy, these transformers are used in industrial and energy applications, including laboratories, medical research, industrial automation systems, and network parameter monitoring. Available in PCB-mounted versions, with a cable hole, and also with galvanic isolation, allowing safe integration into analog and digital circuits.

Precision Current Transformer - What You Need to Know?

The transformer outputs can be in the standard 0–10 V, current, or digital with RS-485 interface and Modbus protocol, allowing easy integration with control and monitoring systems. These transformers generate a signal proportional to the RMS current value, enabling precise current measurement in power electronics applications, electrical networks, and automation systems.

Our offer includes a precision current transformer tailored to various needs - we warmly invite you!

I_PN = 12.5 A ... 600 A

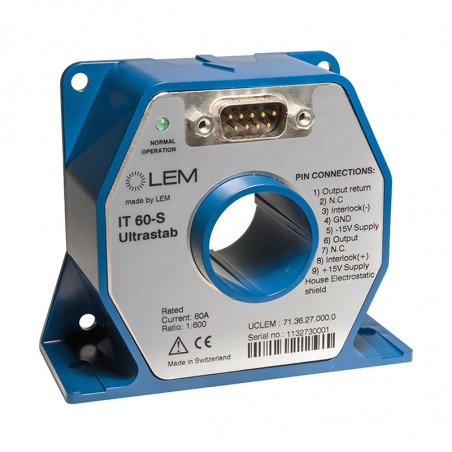

Type		ITN 12-P	IT 60-S	IT 200-S	ITB 300-S	IT 400-S	ITL 900-T	ITN 600-S
IPN [ADC]		12.5	60	200	300	400	400	600
IPN [ARMS]		8.8	42	141	300	282	400	424
IP [A]		± 12.5	±60	±200	±450	±400	±900	±600
Technology		Fluxgate IT
UC [V]		±15	±15	± 15	±15	±15	± 15	± 15
Vout/Iout @IPN		50 mA	100 mA	200 mA	150 mA	200 mA	266.66 mA	400 mA
BW [kHz] j)		DC-500 (3dB)	DC-800 (3dB)	DC-500 (3dB)	DC-100 (3dB)	DC-500 (3dB)	DC-200 m) (3dB)	DC-300 (3dB)
EL Linearity (ppm) i) k)		4	20	3	10	3	1	1.5
IOE/VOE Offset (ppm) i) k)		500	250	80	666	40	10	15
Noise (RMS) (ppm) (DC-100Hz) k)		0.5	1	1	N/A	0.5	0.017 (0.125Hz-1 kHz)	0.3
Noise (RMS) (ppm) (DC-50kHz) k)		10 (DC-100kHz)	15	15	N/A	8	0.006 (1 kHz-30kHz)	15 (DC-100kHz)
TCICE/ TCVCE (ppm/K)k)		2	2.5	2	6.66	1	0.3	0.5
TA [oC]		10...+45	10...+50	10...+50	-40...+85	10...+50	10...+50	10...+50
Mounting	PCB	•
	On-board Panel		•	•	•	•	•	•
Busbar Aperture Diameter (mm)		Integrated	26	26	21.5	26	Integrated busbar 19 mm diameter	30
Features		Metal housing for high immunity against external influence

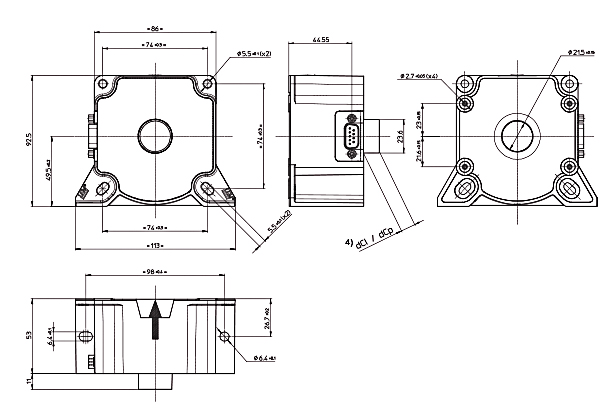

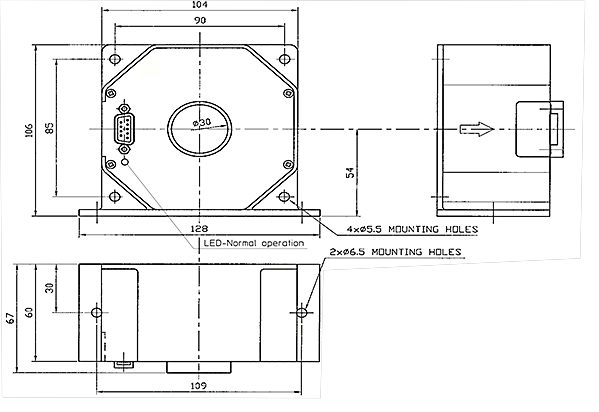

Dimensions

I_PN = 700 A ... 4000 A

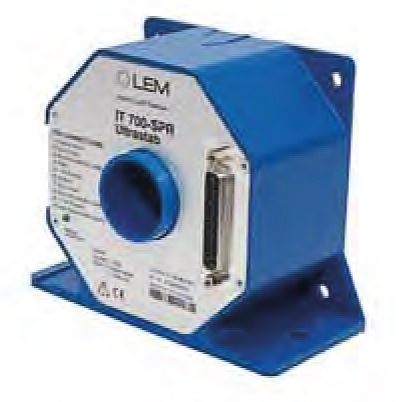

Type	IT 700-S	IT 700-SPR	IT 700-SB	ITN 900-S	IT 1000-S/SP1	ITL 4000-S
IPN [ADC]	700	700	700	900	1000	4000
IPN [ARMS]	495	495	495	636	707	4000
IP [A]	± 700	± 700	± 700	±900	±1000	± 12000
Technology	Fluxgate IT
UC [V]	± 15	± 15	± 15	±15	±15	±24
Vout/Iout @IPN	400 mA	400 mA	10 V	600 mA	1 A	1.6 A
BW [kHz] j)	DC-100 (3dB)	DC-100 (3dB)	DC-100 (3dB)	DC-300 (3dB)	DC-500 (3dB)	DC-50 n) (1dB)
ELLinearity (ppm) i) k)	3	3	30	1	3	100
IOE/VOE Offset (ppm) i) k)	50	50	60	10	50	62.5
Noise (RMS) (ppm) (DC-100Hz) k)	0.5	1	2	0.2	N/A	125 (0.1 Hz-10kHz)
Noise (RMS) (ppm) (DC-50kHz) k)	6	16	10	10	6	125 (0.1Hz-10kHz)
TCICE /TCVCE (ppm/K)k)	0.5	0.5	4	0.3	0.5	1.38
TA [oC]	10...+50	10...+50	10...+50	10...+50	10...+50	-40...+70
Mounting On-board Panel	•	•	•	•	•	•
Busbar Aperture Diameter (mm)	30	30	30	30	30	268
Features		Programmable from 80 A in step of 10 A			High bandwidth

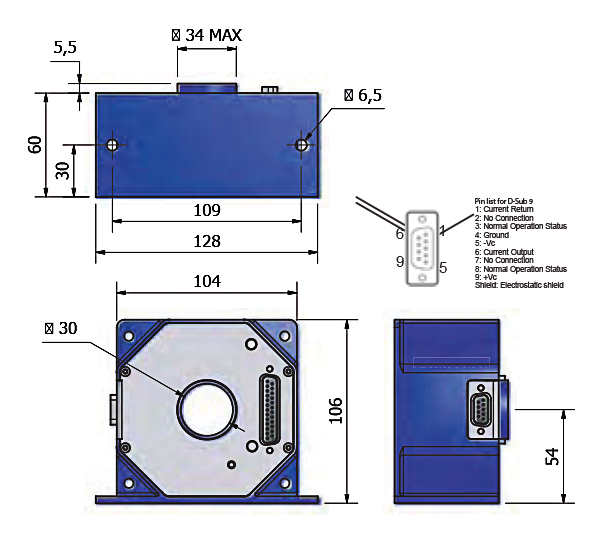

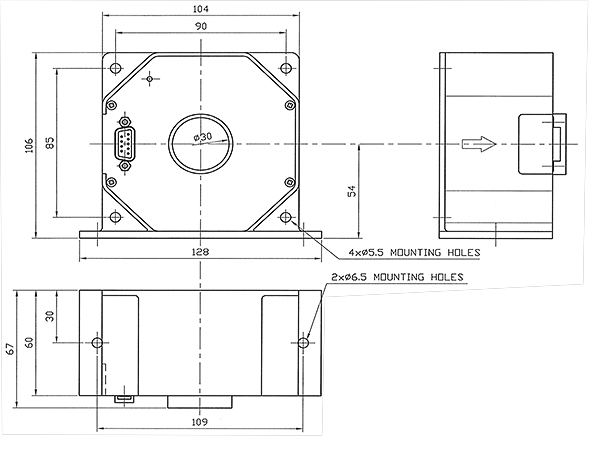

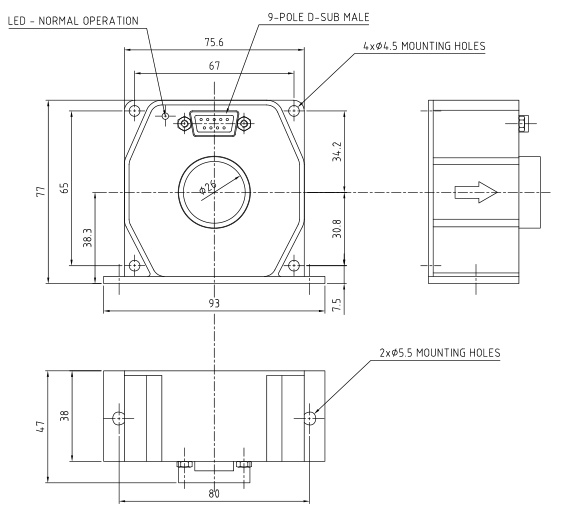

Dimensions

I_PN = 600 A ... 5000 A

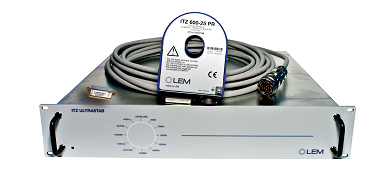

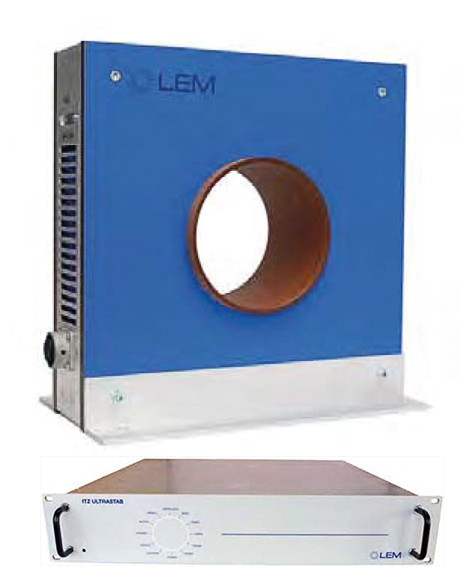

Type	ITZ 600-SPR	ITZ 600-SBPR	ITZ 2000-S	ITZ 2000-SB	ITZ 2000-SPR	ITZ 2000-SBPR	IT 5000-S
IPN [ADC]	600	600	2000	2000	2000	2000	5000
IPN [ARMS]	424	424	1414	1414	1414	1414	3535
IP [A]	±600	±600	±2000	±2000	±2000	±2000	±5000
Technology	Fluxgate IT
UC [V]	100-240 VAC 50/60 Hz
Vout//Iout @IPN	1 A	10 V	2 A	10 V	1 A	10 V	2 A
BW [kHz] j)	DC-500 o) (3dB)	DC-300 o) (3dB)	DC-300 o) (3dB)	DC-300 o) (3dB)	DC-80 o) (3dB)	DC-80 o) (3dB)	DC-80 o) (3dB)
EL Linearity (ppm) i) k)	1	10	2	11	2	11	3
IOE/VOE Offset (ppm) i) k)	2	3	2	3	2	3	2
Noise (RMS) (ppm) (DC-100Hz) k)	11 (DC-10kHz)	8 (DC-10kHz)	3 (DC-10kHz)	3 (DC-10kHz)	7 (DC-10kHz)	2 (DC-10kHz)	2.5 (DC-10kHz)
Noise (RMS) (ppm) (DC-50kHz) k)	28 (DC-100kHz)	60 (DC-100kHz)	27 (DC-100kHz)	60 (DC-100kHz)	42 (DC-100kHz)	60 (DC-100kHz)	20 (DC-100kHz)
TCICE /TCVCE (ppm/K)k)	0.1	0.3	0.1	0.3	0.1	0.3	0.1
TA [oC]	0...+55 Head +10…+40 Elec.
Mounting - Measuring head + 19” rack electronic	•	•	•	•	•	•	•
Busbar Aperture Diameter (mm)	25.4	25.4	50	50	50	50	140.3
Features	Programmable by steps o 20 A from 40 A to 620 A	Programmable by steps of 20 A from 40 A to 620 A			Programmable by steps of 125 A from 125 A to 2000 A	Programmable by steps of 125 A from 125 A to 2000 A

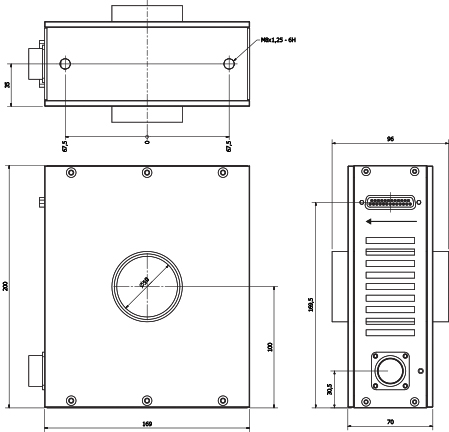

Dimensions

I_PN = 5000 A ... 24000 A

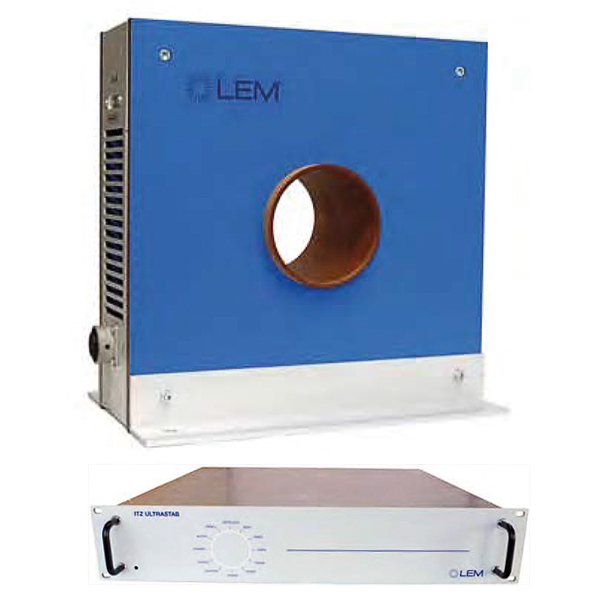

Type	ITZ 5000-SB	ITZ 10000-S	ITZ 10000-SB	ITZ 16000-S	ITZ 16000-SB	ITZ 24000-S
IPN [ADC]	5000	10000	10000	16000	16000	24000
IPN [ARMS]	3535	7070	7070	11314	11314	16970
IP [A]	±5000	±10000	±10000	±16000	±16000	± 24000
Technology	Fluxgate IT
UC [V]	100-240 VAC 50/60 Hz
Vout/Iout @IPN	10 V	2 A	10 V	2 A	10 V	3 A
BW [kHz] j)	DC-80 o) (3dB)	DC-20o) (3d B)	DC-20 o) (3d B)	DC-3o) (3dB)	DC-3o) (3dB)	DC-2 o) (3dB)
EL Linearity (ppm) i) k)	11	5	12	6	12	6
IOE/VOE Offset (ppm) i) k)	3	2	3	2	3	2
Noise (RMS) (ppm) (DC-100Hz) k)	2.5 (DC-10kHz)	8 ( DC-10kHz)	8 (DC-10kHz)	8 (DC-10kHz)	8 (DC-10kHz)	8 (DC-10kHz)
Noise (RMS) (ppm) (DC-50kHz) k)	60 (DC-100kHz)	20 (DC-100kHz)	60 (DC-100kHz)	20 (DC-100kHz)	60 (DC-100kHz)	20 (DC-100kHz)
TCICE /TCVCE (ppm/K)k)	0.3	0.1	0.3	0.1	0.3	0.1
TA [oC]	0...+55 Head +10…+40 Elec.
Mounting - Measuring head + 19” rack electronic	•	•	•	•	•	•
Busbar Aperture Diameter (mm)	140.3	100	100	150.3	150.3	150.3

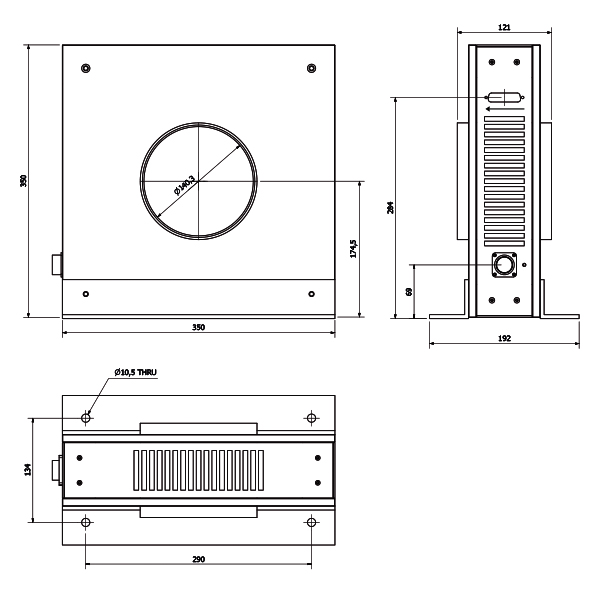

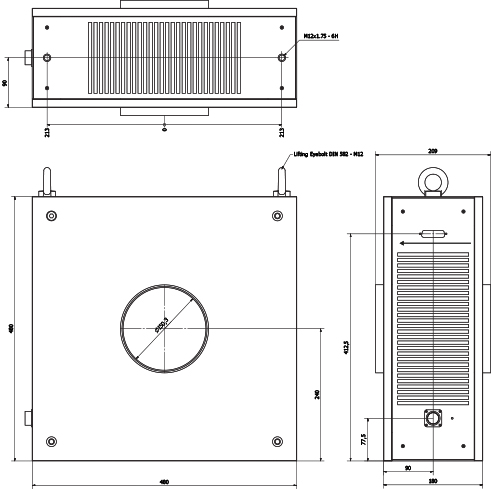

Dimensions

Notes:
ⁱ⁾ Linearity measured at DC
^j)Bandwidth is measured under small signal conditions - amplitude of 0.5% I _PN (DC)
^k) All ppm figures refer to V_OUT or I_OUT@ I_PN(DC) except for ITL 900-T where it refers to I_OUT = 600 mA
^l)Electrical offset current + self magnetization + effect of earth magnetic field @ T_A +25 °C
^m) Small signal 5% of I_PN(DC), 32 A_RMS
ⁿ⁾ Small signal40A _RMS
^o) Bandwidth is measured under small signal conditions - amplitude of 1% I_PN(DC)
N/A – Not Available
