Manufacturer: LEM

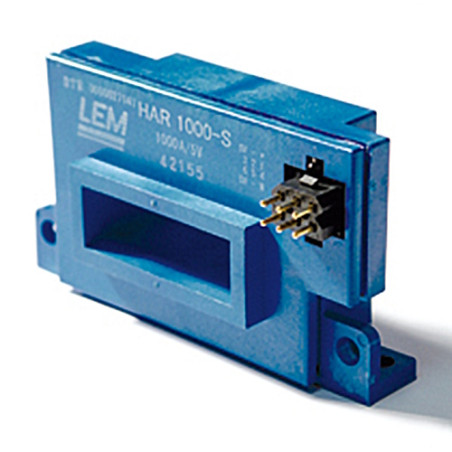

HAR 1000-S current transducer

  • HAR 1000-S
  • Accuracy 0,50%
  • Rated Current [A] 1000
  • Primary signal [AC / AC+DC / DC] AC+DC
  • Supply voltage [V] 15V DC
  • Mounting [THT / SMD / DIN / Panel / On primary rail] Panel
  • App Automation/Automotive batteries/Renewable energy/Drives
  • Output signal type [current/voltage] voltage
  • Minimum operating temperature [°C] -40
  • Maximum operating temperature [°C] 70
  • Frequency response (-3dB) [kHz] 10
  • Feedback loop [open / closed] // Eta technology open

Applications:

  • Single-phase or three-phase inverters
  • Drive and braking choppers
  • Drive converters
  • Auxiliary converters
  • Battery chargers

Technical data:

Measured quantity Current
Rated current 600A
Measuring range ±1000A
Output signal Voltage, ±4V
Signal Primary AC+DC
Power Supply 15V
Accuracy 1%
Operating Temperature -25°C…85°C
Technology Open Loop, Hall Effect
Mounting Panel
