HTB 100-TP current transducer
HTB 100-TP current transducer

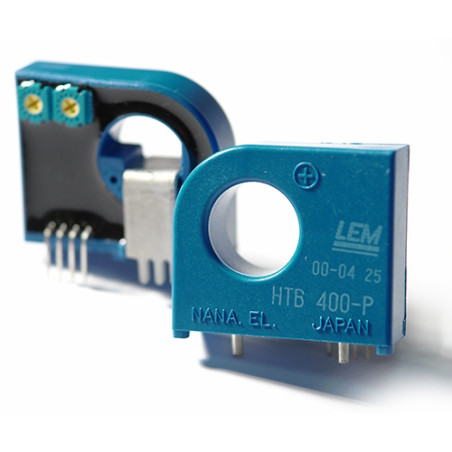

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: LEM

HTB 100-TP current transducer

  • HTB 100-TP
  • Accuracy 1
  • Rated Current [A] 100
  • Primary signal [AC / AC+DC / DC] AC+DC
  • Supply voltage [V] ±12…15
  • Mounting [THT / SMD / DIN / Panel / On primary rail] THT
  • App Drives/Power Supplies/Renewable Energy/Welding
  • Output signal type [current/voltage] voltage
  • Minimum operating temperature [°C] -40
  • Maximum operating temperature [°C] 80
  • Frequency response (-3dB) [kHz] 50
  • Feedback loop [open / closed] // Eta technology open

Description

Designed for electronic current measurement: DC, AC, pulsed, etc., with galvanic isolation between primary and secondary circuits.

Main Features

  • Hall Effect Measurement
  • Galvanic Isolation between Primary and Secondary Circuits
  • 2500V Insulation Test Voltage
  • Low Power Consumption
  • Wide Power Supply Range ±12…15V
  • Optional Busbar for 50A and 100A Versions for Easy Connection
  • Insulating Plastic Housing Recognized according to UL 94-V0
  • Small Size to Save Space
  • One Design for a Wide Range Currents
  • High immunity to external interference

Applications

  • Variable speed AC drives and servo motors
  • Static converters for DC motor drives
  • Battery-powered applications
  • Uninterruptible power supplies (UPS)
  • Switched-mode power supplies (SMPS)
  • Power supplies for welding applications

Technical Data

Parameter Value
Rated primary current RMS (IPN) ±100A
Primary Current Measuring Range (IPM) ±300A
Output Voltage (Analog) for: ±Ipn, RL=10kΩ, TA=25°C ±4V
Output Internal Resistance 100Ω
Insulation Resistance (at 500V DC) > 500MΩ
Resistance Load > 10kΩ
Supply voltage (±5%) ±12…15V
Current consumption 15mA
Error at primary current Ipn and temperature TA=25°C (without offset) < ±1%
Frequency response (-3dB) DC…50kHz
Temperature Working Temperature -40÷80°C
Storage Temperature -40÷85°C
Weight < 36g
