HXS 20-NP current transducer
HXS 20-NP current transducer

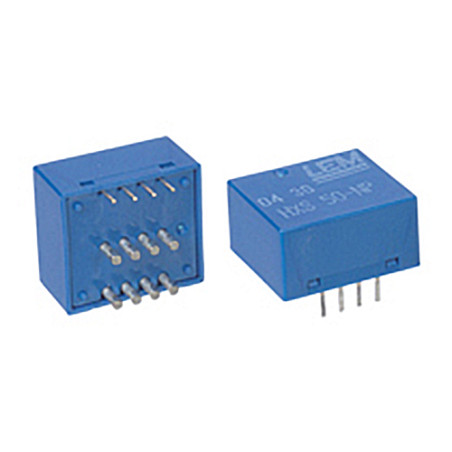

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: LEM

HXS 20-NP current transducer

  • HXS 20-NP
  • Accuracy 1
  • Rated Current [A] 20
  • Primary signal [AC / AC+DC / DC] AC+DC
  • Supply voltage [V] 5
  • Mounting [THT / SMD / DIN / Panel / On primary rail] THT
  • App Drives/Power Supplies/Renewable Energy/Welding
  • Output signal type [current/voltage] voltage
  • Minimum operating temperature [°C] -40
  • Maximum operating temperature [°C] 105
  • Frequency response (-3dB) [kHz] 50
  • Feedback loop [open / closed] // Eta technology open

HXS 20-NP Current Transducer

For electronic measurement of currents: direct, alternating, pulsed..., with galvanic isolation between the primary and secondary circuits.

Functions

  • Hall effect-based measurements
  • Multi-range current transducer via PCB trace system
  • Galvanic isolation between primary and secondary circuits
  • Insulation test voltage 3500 V
  • Extremely low-profile design < 11 mm
  • Consistent offset and sensitivity
  • Low power consumption
  • Single +5 V supply
  • Insulated plastic housing UL 94-V0 compliant.

Benefits

  • Compact size and space saving
  • One design for a wide range of nominal current values
  • High immunity to external interference
  • Uref IN/OUT

Applications

  • AC adjustable speed drives and servo motor drives
  • Static converters for DC motor drives
  • Battery-powered applications
  • Uninterruptible power supplies (UPS)
  • Switched Switched Mode Power Supplies (SMPS)
  • Power Supplies for Welding Applications
Series HXS
Measurements Current
Nominal Values 5 A, 10 A, 20 A
Measuring Range 60 A
Secondary Signal Nominal Voltage
Secondary Nominal Signal Value Instantaneous 2.5 +/- 0.625 V
Primary Signal AC + DC
Supply Voltage External Unipolar DC
Supply Voltage Range 5 - 5 V
Accuracy 1 %
Operating Temperature -40 °C / 105 °C
Technology Open-loop Hall Effect
Assembly PCB
Applications Drives, Power Supplies, Renewable Energy Sources, Welding
