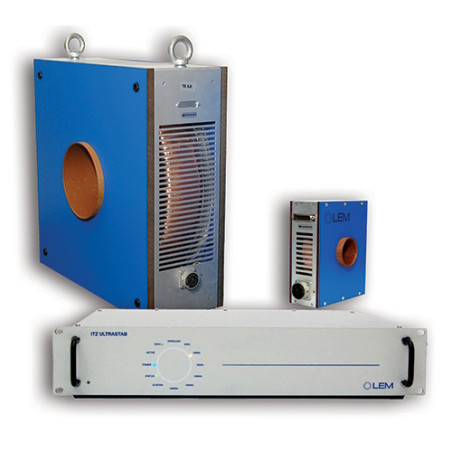

ITZ 10000-S FLEX ULTRASTAB current transducer
ITZ 10000-S FLEX ULTRASTAB current transducer

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: LEM

ITZ 10000-S FLEX ULTRASTAB current transducer

  • ITZ 10000-S FLEX ULTRASTAB
  • Accuracy 0,00%
  • Rated Current [A] 10000
  • Primary signal [AC / AC+DC / DC] AC+DC
  • Supply voltage [V] 100...240V AC
  • Mounting [THT / SMD / DIN / Panel / On primary rail] Panel
  • App Automation
  • Output signal type [current/voltage] current
  • Minimum operating temperature [°C] 10
  • Maximum operating temperature [°C] 40
  • Frequency response (-3dB) [kHz] 20
  • Feedback loop [open / closed] // Eta technology closed

Applications:

  • Feedback element in high-precision and stable power supplies
  • Calibration unit
  • Testing and calibration of power sources
  • Current extension cord for power supply systems
  • Measurement of differential current on power lines
  • Metology applications

Technical data:

Measured quantity Current
Rated current 10000A
Measuring range ±10000A
Output signal Current, ±2A
Primary signal AC+DC
Power supply 100…240V AC
Accuracy 0.0007%
Operating Temperature 10°C…40°C
Technology Fluxgate IT Closed Loop
Mounting Panel
