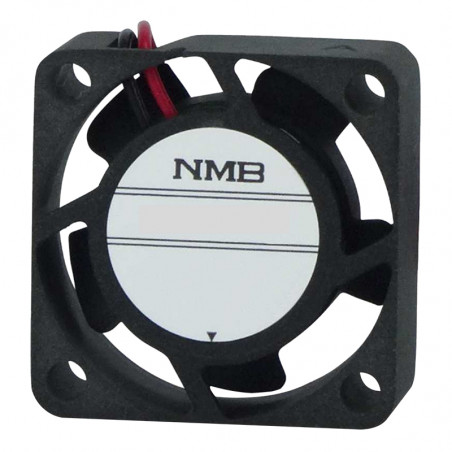

NMB MINEBEA ventilators
  • NMB MINEBEA ventilators

Photos are for informational purposes only. View product specification

NMB MINEBEA ventilators

NMB MINEBEA ventilators

Technical data DC:
• BLDC motor
• ball bearing
• Operation temperature- 10°C - 70°C

Technical data AC:
• induction motor, ball bearing
• Operation temperature-: -40°C - 70°C,




Table. Compact ventilators DC

TypeVoltage
[V DC]
Range
[V DC]
Power
[W]
Current
[mA]
Speed
[turn/min.]
Noise level
[dB]
Pressure
[mm/H2O]
Efficiency
[m3/h]
Dimension A
[mm]
Dimension B
[mm]
Dimension C
[mm]
Standards
ULCSAVDE
2410ML04 WB50 12 6-13,8 2,4 200 4900 35 6,3 39 60 50 25 + + +
2410ML05 WB50 24 10-27,6 2,4 100 4900 35 6,3 40 60 50 25 + + +
3108NL04 WB50 12 6-13,8 3,36 280 3600 39 5,1 72 80 71,5 20 + +
3110KL04 WB50 12 6-13,8 2,76 230 3250 34 3,8 66 80 72,5 25 + + +
3110KL05 WB50 24 10-27,6 2,88 120 3250 34 3,8 66 80 72,5 25 + + +
3610KL04 WB50 12 6-13 3,8 315 3200 41 4,9 93 92 82,5 25 + + +
3610KL05 WB50 24 10-25 3,8 160 3200 41 4,9 93 92 82,5 25 + + +
4710KL04 WB50 12 6-13 6,8 570 2400 39 4,5 153 119 105 25 + + +
4710KL05 WB50 24 10-27,6 5,8 240 2400 39 4,5 153 119 105 25 + + +
4715KL04 WB30 12 6-13,8 6,6 550 2950 42 7 184 119 105 38,5 + + +
4715KL05 WB30 24 10-27,6 7,4 310 2950 43 7 184 119 105 38,5 + + +
4715KL07 WB30 48 25-55,2 7,7 520 2950 43 7 184 119 105 38,5 + + +

Table. Compact ventilators AC

TypeVoltage
[V DC]
Range
[V DC]
Power
[W]
Current
[mA]
Speed
[turn/min.]
Noise level
[dB]
Pressure
[mm/H2O]
Efficiency
[m3/h]
Dimension A
[mm]
Dimension B
[mm]
Dimension C
[mm]
Standards
ULCSAVDE
3115PS12WB30 115 50/60 9/7 140/110 2700/3200 33/38 4,5/6,4 45/54 80 71,5 38 + + +
3115PS23WB30 230 50/60 10/8 70/55 2700/3200 33/38 4,5/6,4 45/54 80 71,5 38 + + +
3610PS12TB30 115 50/60 12/9 170/130 2600/3100 34/38 4,4/6,2 48/59 92 82,5 25 + + +
3610PS23TB30 230 50/60 13/10 90/70 2600/3100 34/38 4,4/6,2 48/59 92 82,5 25 + + +
4710PS12TB30 115 50/60 14/11 190/160 2300/2700 34/38 4,2/4,2 108/120 119 105 25 + + +
4710PS23TB30 230 50/60 14/11 100/90 2300/2700 34/38 4,2/4,2 108/120 119 105 25 + + +
4715MS12TB50 115 50/60 15/13 250/210 2600/2900 37/41 7,5/9 162/192 119 105 38 + + +
4715MS23TB50 230 50/60 15/14 120/100 2600/2900 37/41 7,5/9 162/192 119 105 38 + + +
5915PC12TB30 115 50/60 35/32 380/360 2700/3200 52/56 18/24 318/372 172 162 38 + + +
5915PC23TB30 230 50/60 35/35 190/180 2700/3200 52/56 18/24 318/372 172 162 38 + + +

Scheme Type 24xx¸ 47xx

Scheme Type 5915
