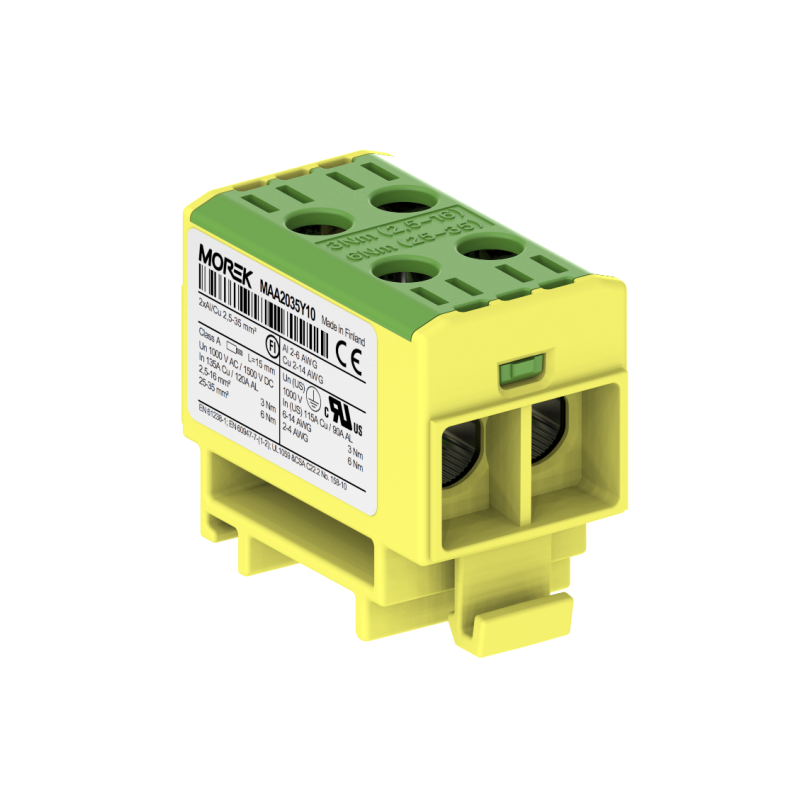

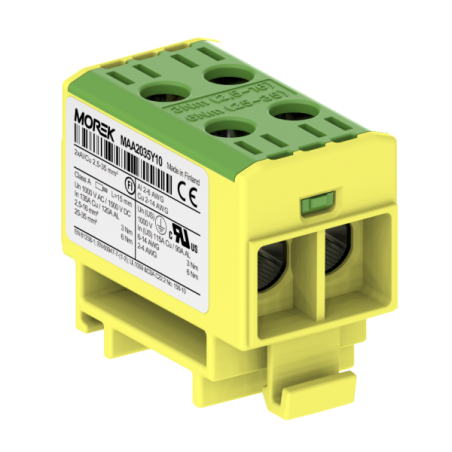

OTL35-2 yellow-green color 2xAl/Cu 2.5-35mm² 1000V AC / 1500V DC Universal terminal MAA2035Y10
OTL35-2 yellow-green color 2xAl/Cu 2.5-35mm² 1000V AC / 1500V DC Universal terminal MAA2035Y10

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: MOREK

OTL35-2 yellow-green color 2xAl/Cu 2.5-35mm² 1000V AC / 1500V DC Universal terminal MAA2035Y10

  • MAA2035Y10
  • Width (mm) 27
  • Depth (mm) 46
  • Rated voltage 1500
  • Colour Green-yellow
  • Height (mm) 40
  • Mounting method DIN TH-35 mm mounting rail
  • Rated Current [A] 270
  • Cross-section of the fine-wire connecting cable without cable end sleeve [mm²] 2.5..25
  • Cross-section of fine-strand connecting cable with end sleeve [mm²] 2.5..25
  • Cross-section of connecting wire, solid wire [mm²] UN
  • Cross-section of connectable multi-core cable [mm²] 2.5..35
  • Type of electrical connection Screw connection
  • Number of levels 1
  • Number of clamp positions per level 4
  • Insulating body material Thermoplastic material
  • Flammability class of the insulating material according to UL94 V0
  • Explosion-tested version "Ex e" NO
  • Closing plate required NO
  • Internally connected steps Yes
  • Working temperature -25..80
